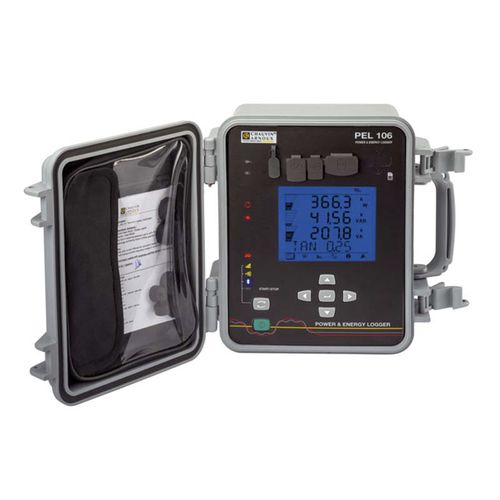

The PEL106 power logger measures and records all the useful data for energy consumption diagnostics. The PEL106 can be used without cutting off the mains power supply.

Highlights
• IP67 all-terrain casing resistant to shock, UV light and high temperatures
• Communication via Wifi, 3G-UMTS/GPRS, LAN (Ethernet), Bluetooth and USB
• Self-powered via its voltage inputs up to 1,000 V
• Continuous recording with an interval of 200 ms between measurements
• Measurements as per the IEEE 1459 standard
• 4 voltage inputs & 4 current inputs
• Ideal for installation on electricity poles

Parameter Name	Parameter Value
Measured quantity	power, energy consumption
Connector type	USB, WiFi, Bluetooth, UMTS, Ethernet
Display	with LCD display
Other characteristics	IP67 continuous
