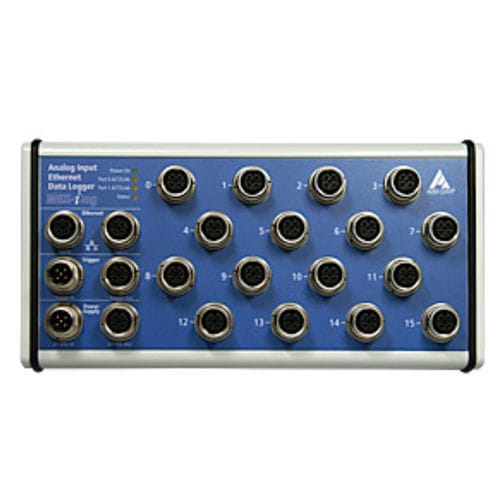

The intelligent Ethernet data logger with 16 analog inputs MSX-ilog-3016 has 16 differential inputs, 16 bit, with a throughput rate of 1 KHz per channel. It was developped for the long-term data acquisition in the field and data visualisation and thus comes with an 4 GB build-in flash memory. The acquired data is processed onboard and transformed into physical values, such es mm, bar, C° etc. The parametering and visualisation of the measured values are carried out via an integrated web site. Thus no additional software installation is needed. The acquisition, visualisation and data storage take place automatically. Thanks to the degree of protection IP 65, numerous protective circuits and an operating temperature from -40°C to +85°C it is also suitable for use outside.

The intelligent Ethernet data logger MSX-ilog-3016 has 16 differential analog inputs, 16-bit, with a transfer rate of 1 kHz/channel. The parametering and visualisation of the measured values are carried out via an integrated web site. Thus no additional software installation is needed. The acquisition, visualisation and data storage take place
automatically.

Features

Onboard ARM®9 32-bit processor
4 GB memory, data remains stored at power loss
The buffered real-time clock keeps the system time even without supply voltage
Robust metal housing
Power Save Mode: Reduced power consumption when no acquisition runs
24 V digital trigger input

Parameter Name	Parameter Value
Measured quantity	temperature, power
Connector type	Ethernet
Applications	storage
Other characteristics	digital IP65 automatic intelligent
