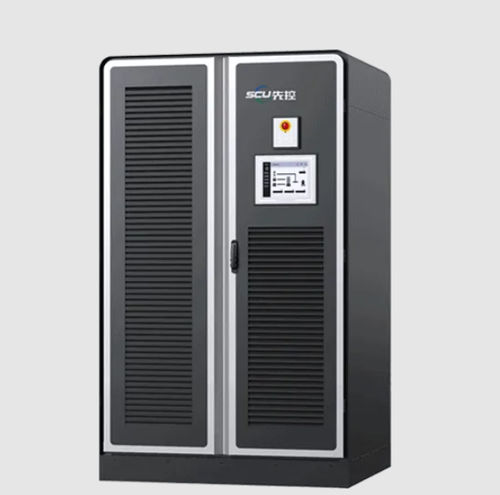

PCS power conversion system energy storage is a multi-functional AC-DC converter by offering both basic bidirectional power converters factions of PCS power and several optional modules which could offer on/off grid switch and renewable energy access. Ranging from 50kW to 250kW, the PCS converter well fits the requirement of Battery Energy Storage in commercial and industrial applications.

Both Energy Storage PCS power conversion system and Lithium-ion Battery System are made by SCU in house. As a hybrid inverter supplier, we could support your PCS battery storage business from power generation, through transmission and distribution, and all the way to users.

A Multi-fuctional PCS Power Converter
Capacity
50kW power module based modular design achives 50-250kW PCS system

Working Mode
The pcs power conversion system supports both grid connection mode, off grid mode (microgrid mode)

Optional STS
Optional STS module support to achive on grid/ off grid seamless transfer

Optional DC-DC module
Optional DC-DC module offers 250-850Vdc input and provides access to PV and wind

Hybrid Inverter Function
Could take the place of generator and UPS

Modular design
50kW module achieves 50-250kW PCS system, flexible configuration, easy maintenance.

Multi-fuctional system
On / off grid seamless transfer, able to connect various battery strings, provide access to PV ESS system.

Certifications
Pass CE LVD EN62477, CE EMC EN61000 EMC, IEC61727, IEC62116.

Voltage range: 700-900V
Capacity: 50kw, 100kw
Size: 600*1000*2000mm

Voltage range: 700-900V
Capacity: 150kw,200kw, 250kw
Size: 1200*1000*2000mm

Parameter Name	Parameter Value
Type	power
Bus	RS-485, CAN
Other characteristics	bidirectional
