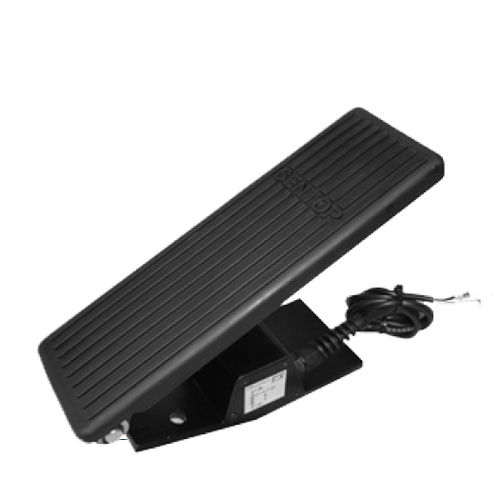

C70FCA Series Pedal

- Pedal with conductive plastic potentiometer incorporated
- Approx. size of base housing: 70mm
- Number of potentiometer to be incorporated: 1 potentiometer,or 2-ganged potentimeters
- Resistance value: 5K, 10K

General Specifications
- Operating angle: Approx.±22°
- Operating force: Approx.15N~27N
- Mechnical life expectancy: 5,000,000 operations
- Operating temperature range: -20℃~+70℃
- Storage temperature range: -20℃~+70℃
- Viration: 10~55Hz 98m/s2
- Shock: 294m/s2
- Protection grade: IP54

Electrical Specifications (potentiometer)
- Standard resistance: 10KΩ±20%, 5KΩ±20% -
- Effectvie electrical angle: Approx. 60° -
- Independent linearity tolearance: ±3%
- Resolution ratio: Essentially infinite
- Power rating: <0.25W
- Output smoothness: < against input voltage 0.2%
- Contact resistance variation: 1,000MΩ at 500V.D.C

Special Specifications
- Available for conductive plastic potentiometer with other resistance (1K, 2K), special output charcteristic, special cable length, etc..
- Available for matching signal module.

The pedal can be customized in accordance with your special requirements.
For other special requirements, please contact us at trade1@sakae.cn

Parameter Name	Parameter Value
Function	control
Technology	potentiometer
Type	single pedal
Other characteristics	rugged compact with cover corrosion-resistant
Applications	for vehicles for railway applications
