Benefits
• ALL controls inside; ONE external cable
• 5 nm resolution
• Easy for prototyping
• Cost-effective for production

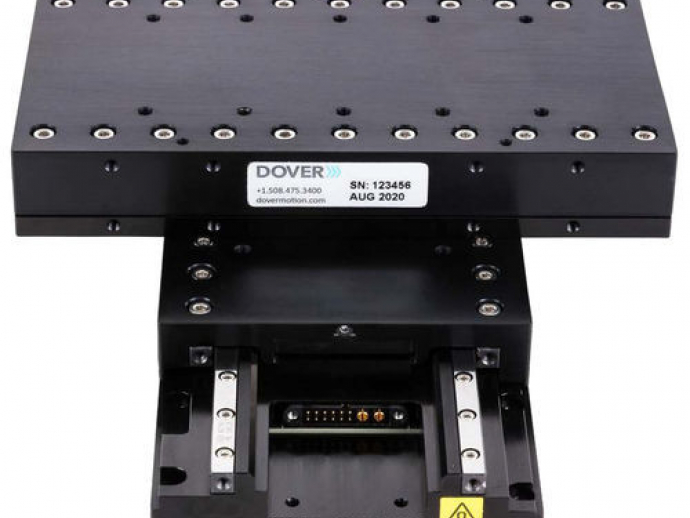

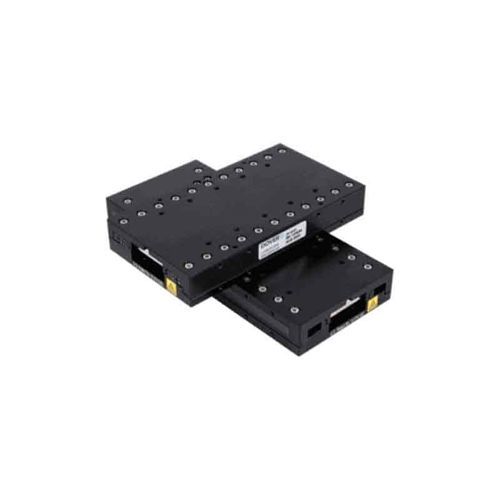

The SmartStage™ positioning stages, available as SmartStage™ Linear for single axis, or as SmartStage™ XY for dual axis, are available in a range of travel sizes and options to meet your precision motion needs.

SmartStage™ positioning stages offers the following features and benefits:

Hardware Agility:

• Unique, compact, integrated motion stage and miniaturized controller, with a single combined power and communications cable
• Easy integration; with minimized footprint, complexity, and lower parts count inside your instrument
• Integrated solution for multiple stages

Performance:

• Precise, high-performance motion control – and supporting software tools – for the most demanding applications
• Compelling price-to-performance ratio, achieved using an innovative and patented system architecture
• US Patent 10,374,530
• US Patent 10,367,436
• Long-life: quiet brushless linear motor, non-contact encoder, crossed-roller linear bearings

Dependability:

• Reliability and confidence of an experienced supplier
• More than 22,000 motion systems shipped to Fortune 500 companies worldwide
• On-time delivery of over 95%

Parameter Name	Parameter Value
Orientation	linear, XY
Type	linear motor-driven
Number of axes	single-axis 2-axis

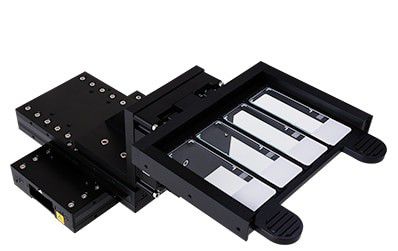

Other characteristics	precision compact for microscopes with integrated controller roller
Stroke (mm)	50 - 100
Speed (mm/s)	600 - 1000
Load (kg)	10 - 10
