MATERIAL
ABS reinforced polycarbonate, self-extinguishing.

STANDARD EXECUTIONS

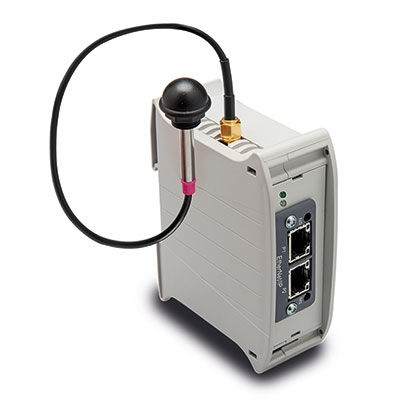

- UC-RF ETHERNET/IP: control unit with Ethernet/IP serial interface.
- UC-RF PROFINET IO: control unit with Profinet IO serial interface.
- UC-RF MODBUS TCP: control unit with Modbus TCP serial interface.
UC-RF control unit can manage up to 36 position indicators. DD52R-E-RF.
Compatible for mounting on DIN RAIL. Two leds (green and red) for
correct diagnostics.

FEATURES AND APPLICATIONS

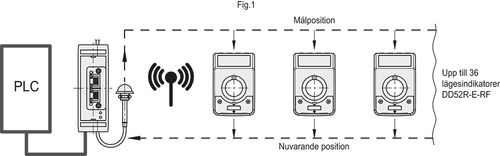

UC-RF control unit, connected directly to PLC, receives the target
positions and sends them to DD52R-E-RF electronic position indicators,
receiving their current position (Fig.1).
This system is particularly suitable for applications that require frequent
format changes, facilitating the correct adjustment of the target/current
position of the machine parts, also representing a safety system.
In fact, even if a single DD52R-E-RF indicator is not placed in the target
position, PLC doesn't allow the beginning of the machine production
cycle, thus avoiding production issues.

SPECIAL EXECUTIONS ON REQUEST
Control unit with Profibus, RS485 or RS232 serial interface.

Parameter Name	Parameter Value
Applications	positioning
Other characteristics	radio frequency
