Digital indicator to measure and display physical quantity such as load, pressure and torque

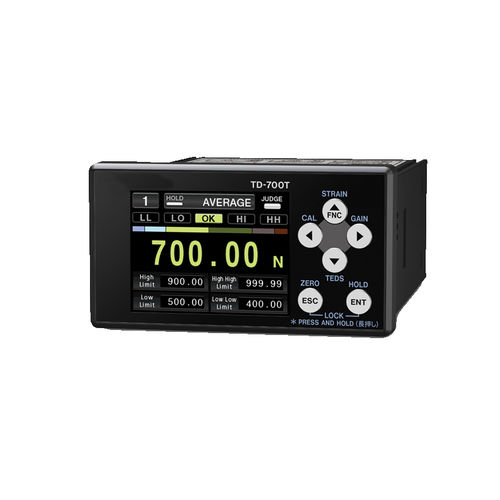

About the TD-700T
TD-700T is a digital indicator to measure and display physical quantity such as load, pressure, and torque working with strain gauge transducer. Color graphic LCD display, high-speed sampling, TEDS function (IEEE1451.4 class 2 mix mode interface compliance) and various hold functions are combined into this compact panel mount display (1/8 DIN size). The TD-700T provides the best performance in the various scenes.
Applications
• Press loading control of press fitting
• Management of tip press load of SMT nozzle
Features of the TD-700T
• High performance color graphic LCD Screen
• High-speed processing
• TEDS function(Automatic Calibration)
• Static Strain Disp. Mode
• Waveform & Bar meter display function
• Variety of data hold function
• CC-Link / RS-485 option
• User friendly warnings
• Remote Sense Function
• Zero Position Bar Graph Settings
• Compact body
Specifications
Bridge Voltage
10V DC, 2.5 V ±10% (30mA current maximum, remote sense can be used)
Signal input range
±3.2 mV/V
Calibration range
0.3 mV/V–3.2 mV/V
Calibration precision
Within 0.1% F.S. (when using a 1m standard TEAC Φ8, 4-core shielded cable with 350Ω impedance, 10V BV and 0.5mV/V or greater setting)
Non-linearity
Within 0.01% F.S. + 1 digit (when input is 1 mV/V or greater)
Zero drift
Within 0.5 μV/°C (input conversion value)
Gain drift
Within ±0.005% F.S./°C
A/D conversion
24-bit, 4000 times per second, 20000 times per second (fast sampling mode)
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Measured value |
position, current, DC, pressure, speed, load, torque
|
| Display |
digital
|
| Type |
panel-mount
|
