This is a 3 digit indicator to adjust and directly read a motion (or an angle) obtained by a drive shaft rotation, particularly suitable for little adjustments in small spaces.

Shock-proof, self extinguishing technopolymer. Protection IP64. Max. temperature 80°C.
Inclined view at 45° for horizontal shafts and for vertical shafts, excellent readabilty given by the means of magnifying window.
3 digits counter (standard red digit indicates decimals; on request 2 red digits for hundredths or 3 black digits). Reading until 999. Digit height 6 mm
On request special ratios and measures in Inch.
Standard shaft hole Ø8, Ø10 or Ø12.
Distance of anti-rotation lock-pin standard18mm, on request 22mm.
Hollow shaft and metalic parts (inner and external) in stainless steel as standard version.

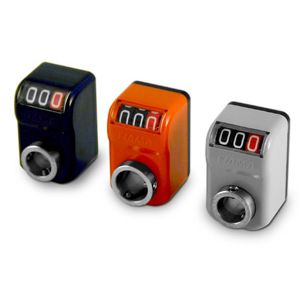

Colours: orange RAL 2004, black RAL 9005, grey RAL 7004, glossy finish.
Available attachments: anodized aluminium shaft block flange, polycarbonate spacer flange, anodizid aluminium movement knob.

Parameter Name	Parameter Value
Measured value	position
Display	4-digit
Type	hollow-shaft
