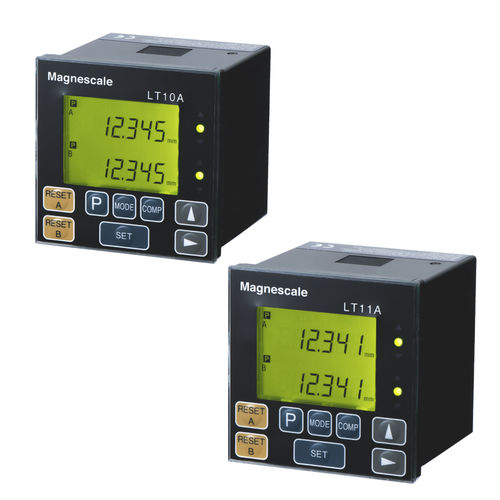

LT10A, LT11A Display units for DT Series

1 or 2 channel multifunction display for Digital Gauges of DT-series

Measuring modes: Current value, MAX, MIN, P_P
Addition and subtraction function: A+B, A-B
Comparator function: upper/low limits setting; GO / NO GO via NPN open collector output
Start/Hold function
Interface: BCD / RS232 (optional)
Power supply: 9 to 26.4 VDC

Parameter Name	Parameter Value
Measured value	position
Display	digital illuminated
Type	panel-mount tabletop
Other characteristics	easy to install programmable compact with fast peak hold function RS-232 with alarm TTL mountable housing BCD Interface with counting function multifunction RS-422 dual-channel
Applications	for incremental position sensors min/max for quality control
