Material:
Housing polyamide 6.
Hollow shaft steel.
Screen plastic.
Grub screw steel.Version:Impact-resistant housing.
Hollow shaft black oxidised.
Grub screw black.

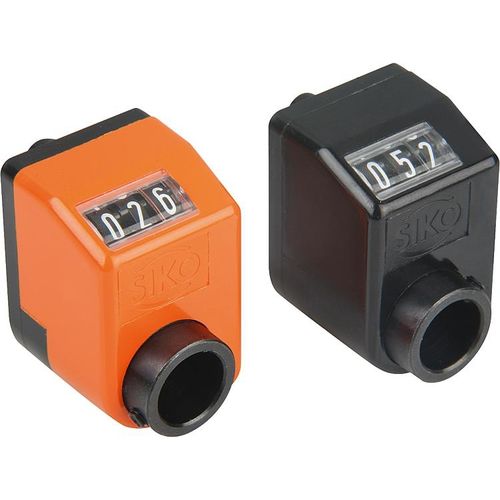

Dial black, digits white.Note:Position indicators allow direct reading of input measurement values at a glance.
In addition, the value indicated per spindle rotation (corresponding spindle pitch) can be selected and the various indicator values are realised by a transmission gear. The position indicators are distinguished by their small construction with very clear display.
They are especially suitable for small spindle distances and small shaft diameters and have a torque support that is positioned in a hole on the side.

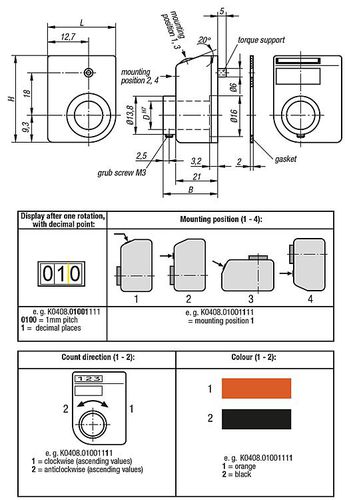

** At the 1st asterisk give assembly position and at the 2nd asterisk give the count direction (see sample order “assembly position, count direction”).Technical data:– Counter consisting of 3 10-position dials
– Height of figures about 4 mm
– Hollow shaft Ø 10 H7 mm
– Temperature resistant to 80 °C
– Oil and solvent resistantOn request:– Stainless steel driveshaft
– Indicator for inchAccessory:– Reducing bushes K0412

Parameter Name	Parameter Value
Measured value	position
Display	analog
Type	in-line
Other characteristics	compact
Applications	linear actuator
