Risolution: 1 - 5 - 10 micron
Axes: X - Y - Z - W

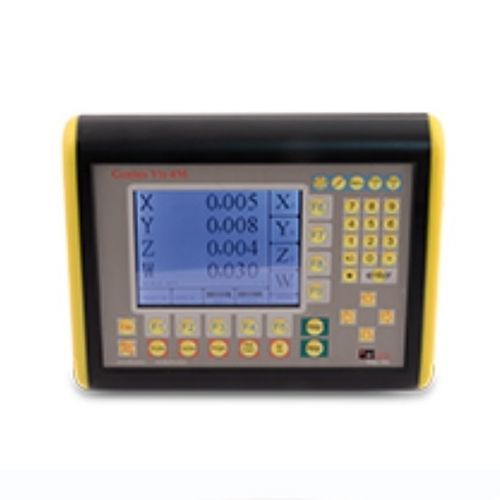

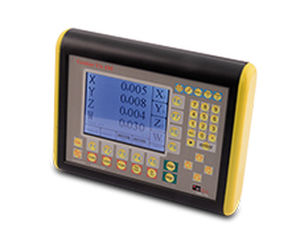

GENIUS digital read-out, for milling and boring machines, has a large LCD display to visualize the part. It also displays a guide to the programming of complex work cycles, such as holes on circle or arc, on line or grid, etc. It can display up to 4 axes linear or angular, suitable for large machines that want to use measuring systems with a resolution of 0.001 o 0.005 mm. Each axis has 8 digits plus sign, therefore it is able to display moving up to 90 meters, with a resolution of 1 micron.

•99 work origins
•99 tools
•20 programs/piece (2000 blocks/prog.)
•mm/inch conversion
•Absolute/incremental conversion
•Linear error compensation
•Non-linear error compensation
•up to 200 points for each axe
•Can display the 4° axe in degrees
•Advanced functions:
- holes on flange
- holes and arc
- holes on line and grid
•Angle measurement
•Radius/diameter
•Piece centering
•Configurable axes summation
•Flange centering
•Serial output RS232
•Upgrade software
•Graphical menu for user support
•Weight: 5,0 Kg
•Power supply: 115 ÷ 230 Vac; 50-60 Hz; 30 VA

Parameter Name	Parameter Value
Measured value	position
Display	LCD display
Type	panel-mount
Applications	for machine tools
