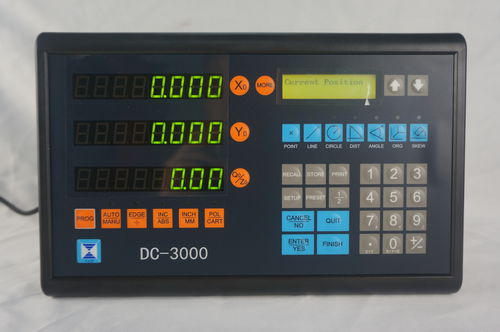

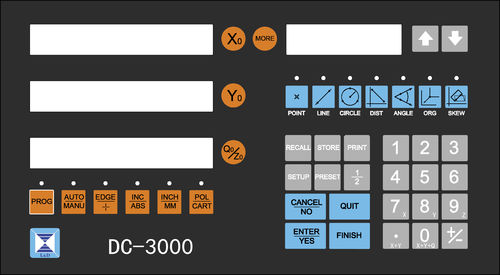

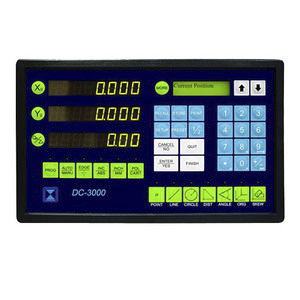

Name: - Geometric Measurement Readouts（DC-3000）
Model: - DC-3000

Usages

This digital readout is idea for the measurement and inspection of 2-D geometric components and can be used with inspection tools such as optical comparators, optical edge detection, measuring microscopes, coordinate measuring machines and video systems.

Features

• Inch/metric conversion
• Incremental or absolute measurement
• Zero reset
• Linear error correction and Segment error correction
• RS232 interface data output to PC or Printer
• Skew function for part alignment correction
• Single key calculation for common functions
• Polar or Cartesian coordinates
• Part programming allows creation, editing, and running of programs in measurement sequence
• Point, line, Arc, Circle, Distance, and Angle measuring ability
• Measurement data print capabilities
• Feature construction capabilities
• Allows operators to accomplish simple to complex measurements quickly and easily
• Preset function
• With foot switch or edge detector, can quickly capture the data
• Z can be connected with scale or encoder
• Footswitch and printers help to capture the precise measurement data more conveniently
• As standard, DC3000 can accommodate English, Chinese, Portuguese

Parameter Name	Parameter Value
Measured value	position
Display	digital
Type	panel-mount
Other characteristics	RS-232
Applications	for machine tools
