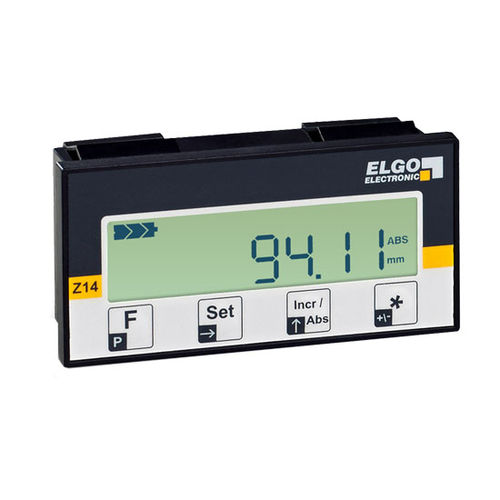

Absolute Measuring with display Battery-powered Mini Indicator with Absolute Measuring System
- System resolution up to 0.1 mm
- 7-digit LCD-display
- Configurable display modes: mm, m, inch with fraction display
- Adjustable counting direction, decimal point and multiplication factor
- Adjustable reference value
- Key lock
- Easy installation, snap-in mounting
- 3 adjustable tool-offsets, individually activateable via parameter
- Switch-over between incremental and absolute measuring
- Optional 1 external input for special functions (5 ... 30 V)
- Sensor cable length up to 20.0 m
- Power supply via build-in battery case 2 x AAA batteries or via an external battery case (e.g. 1 x C [1.5 V] or 2 x C [3 V])
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Measured value |
position, power
|
| Display |
LCD display
|
| Type |
panel-mount
|
| Other characteristics |
battery-powered
|
| Applications |
for encoders
|
