Portable monitoring system

Portable monitoring system

Portable monitoring system

About

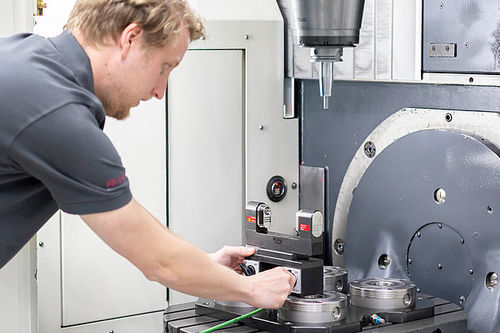

Portable SpindleControl (PSC) is a high-precision, portable system for flexible testing and monitoring of motor spindles in machine tools. With the set consisting of LC50-DIGILOG, the “LC-VISION PSC” software and additional accessories, the most important spindle parameters can be recorded and evaluated quickly and easily.

•Portable spindle monitoring system
•Portable system, perfect for mobile use
•Spindle monitoring at the tool centre point and over the entire speed range
•Plug & play solution without PLC adjustments
•No connection to the machine control required
•Enables predictive maintenance and prevents unplanned machine downtime
•Graphical representation, logging and statistical evaluation of the results

Applications
•Prevents unscheduled machine downtimes due to defective spindles
•Monitoring of the motor spindle quality throughout the entire life cycle
•Detects bearing damage at an early stage
•User-friendly Installation

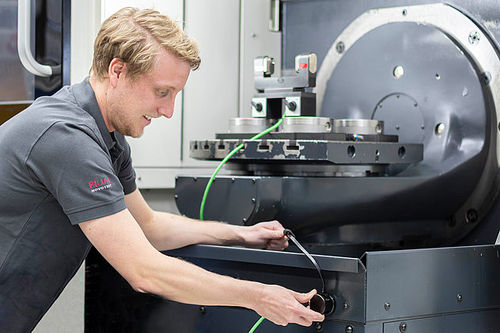

•Safety: Ribbon cable allows operation with the machine door closed
•Perfect solution for spindle service companies, maintenance and repair departments, spindle manufacturers and machine tool manufacturers

Analysis and visualisation
•Logging of measuring results
•Statistical evaluation of individual measurements depending on spindle speed
•Graphical visualisation of the recorded measured values
•Freely-definable warning and tolerance limits



PARAMETERS

Parameter Name Parameter Value
Type
machine condition
Applications
bearing
Configuration
  • portable
  • mobile
Other characteristics
  • high-precision
  • individual
