Portable data acquisition system B_23200

Portable data acquisition system B_23200

Portable data acquisition system B_23200

About

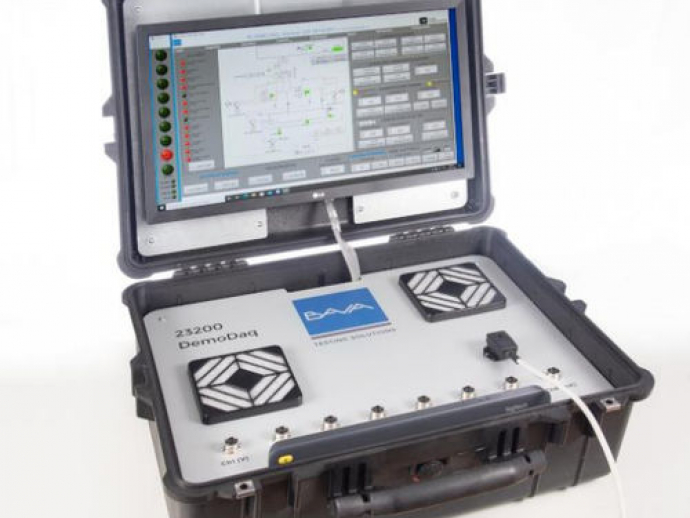

DAS is a data collection terminal; it can be coupled to any kind of test benches.

It reads and records sensors from field, show measures and trends with graphics analysis.
arch Its architecture is extremely flexible and adaptable to any application: one or more PC, in a Windows 10 Pro© environment, can be networked with remote and distributed acquisition devices, or connected to local devices on the USB bus or on internal buses. At the same time, SW application can be resident on a single PC or distributed among various networked devices in a Windows©, Linux RT and / or FPGA environment. Whatever the architecture adopted (concentrated or distributed), the command and supervision of the system is carried out via HMI in a Windows© environment.

DAS allows you to control the individual devices, the operating modes (manual / automatic) and to view status and measures from the sensors in a simple and intuitive way. The system allows to insert test recipes, store recipes and execute automatic tests.

Test report can be filled with notes and descriptions; more of that, during test configuration, you can select relevant sensors and type of output, CSV or EXCEL © format.

Depending on application, DAS can be equipped with special functions.

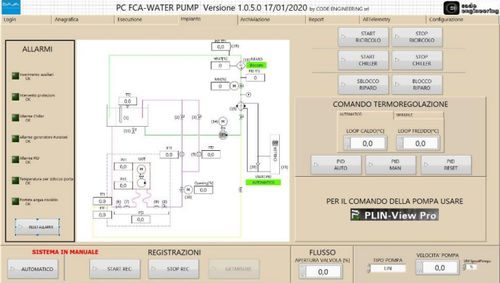

Figures, on the right, show an interface for displaying and configuring vibration measurements (in time and frequency) integrated into the HMI but carried out by dedicated hardware transparently to the operator.



PARAMETERS

Parameter Name Parameter Value
Mounting
portable
Options and accessories
  • USB
  • analog input
  • digital
