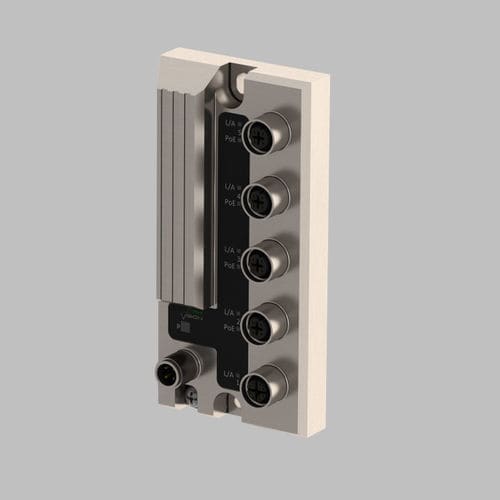

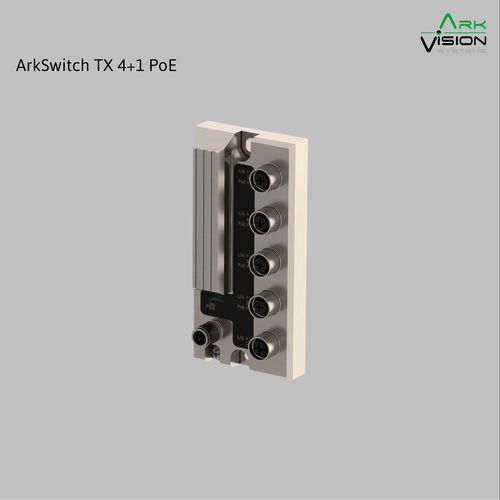

The Industrial PoE Ethernet Switch is perfectly suited for use in harsh industrial environments outside the control cabinet and for networks in passenger trains, buses, commercial vehicles and agricultural machi-nery. With a supply voltage of 24 VDC, the switch supplies connected end devices on the four D-coded M12 ports with data and power in accordance with the IEEE 802.3at (Type 1) standard with a total power budget of 40 watts. With the X-coded M12 uplink port, sufficient reserves are available for data trans-mission thanks to the high bandwidth. Due to the ex-tended temperature range of -40°C to +70°C, excellent EMC performance (DIN EN 50121-3-2) and fire protection according to DIN EN 45545, the SPARK is suitable for use in trains and comply with DIN EN 50155. By supporting Autonegotiation and Auto MDI-X a quick and easy commissioning is possible.

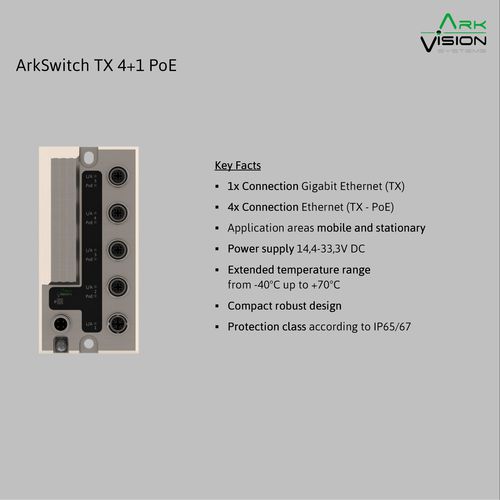

Key facts:
1x Output Ethernet (TX)
4x Input Ethernet (TX-PoE)
Application areas mobile and stationary
Power supply 14,4-33,3V DC (M12-A coded)
Extended temperature range from -40°C to +70°C
Compact robust design
Protection class according to IP65/67

Parameter Name	Parameter Value
Type	unmanaged
Number of ports	5 ports
Network	gigabit Ethernet
Mounting	standard cabinet for networks
Other characteristics	PoE compact IP67
Applications	industrial
