This product is an 8-port industrial switching HUB which conforms to IEEE802.3ab (1000BASE-T) / IEEE802.3u (100BASE-TX) / IEEE802.3 (10BASE-T) standard, and it is capable of PoE power supply based on IEEE802.3af, IEEE802.3at. By using a LAN cable of category 5 or greater, power can be supplied to PoE devices that conform to IEEE802.3af and IEEE802.3at.

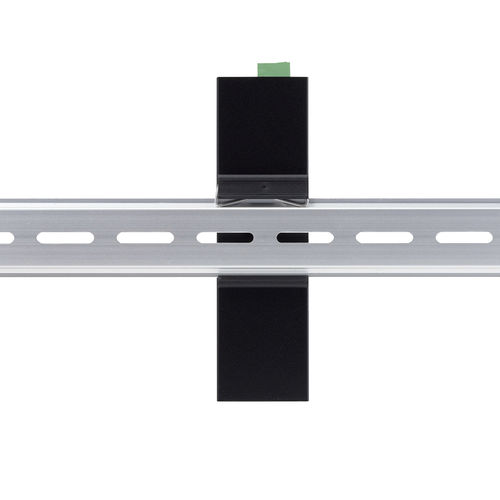

The functions including jumbo frames, AutoMDI / MDI-X, and auto negotiations are within. Due to the fan-less design, this hub can be used in the places where the quietness or a longer lifetime of the product is desired. Furthermore, a metal housing with excellent heat dissipation enables the product to be operated in the temperature between -35°C and 70°C. The product can be set on 35mm-DIN rail or on the wall with the supplied brackets.

IEEE 802.3af / IEEE 802.3at-based PoE power
Power can be supplied from all eight ports to PoE devices that support the IEEE 802.3af and IEEE 802.3at standards. The SH-9008AT-POE can supply up to 30W per port and up to 120W* over all ports.
* With a 12 VDC input power supply voltage, the total PoE power available will be 60 W. With a 24/48 VDC input, the total PoE power available will be 120 W.

Support for a wide range of power supplies (12 to 57 VDC) and dual power supplies
This product supports DC power supplies from 12 to 57 VDC. Support for dual power supplies also means the hub can still be operated even if there is a problem with one of the power supplies. If a problem occurs in a power supply, LEDs on the front panel and abnormality detection relay circuits make it easy to identify the problem quickly.

Built-in boost DC-DC power supply enables 48V PoE output with 12 to 24VDC input

Parameter Name	Parameter Value
Type	managed
Number of ports	8 ports
Mounting	DIN rail standard wall-mount
Other characteristics	PoE
Applications	industrial
