• IP video module for ModuVis door intercom system as basic configuration of an Intercom station (1 bell), can be extended with further modules to up to 49 bells
• Central control unit of the door intercom system (mandatory for every PoE installation)
• 2 MPx day/night camera with IR-LEDs and 180° viewing angle for optimal overview during ringing events (no continuous monitoring)
• Push alarm on mobile device via ABUS Link Station App
• High-quality microphone and loudspeaker for very high speech quality (clear sound of voices, filtering out background noise)
• Bell button with backlighting
• PoE network connection
• Further relay inputs/outputs e.g. for door opener (door buzzer)
• 2 doors can be controlled (e.g. for garden gate)
• Weatherproof IP65, can be flexibly mounted using a mounting frame(surface-mounted or flush-mounted)


The optimal video call station

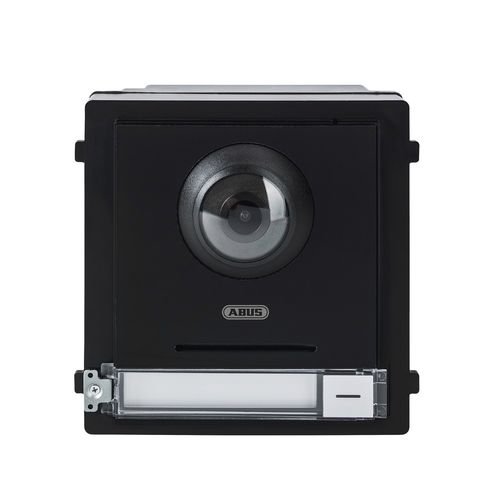

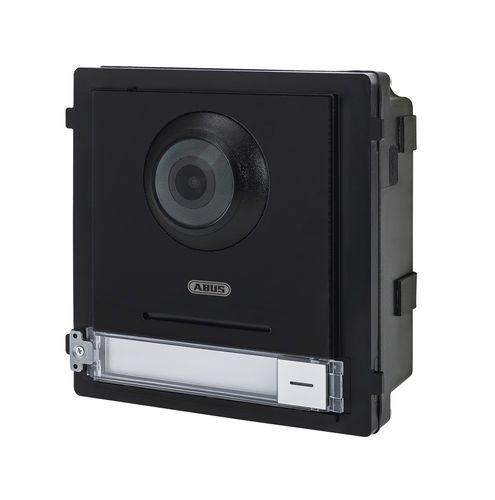

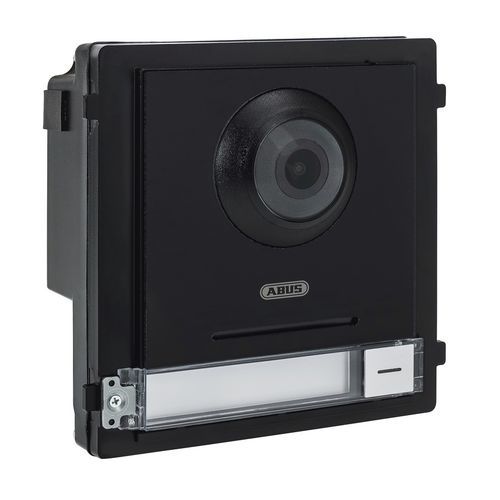

The video module is the central control unit of the ModuVis system. With camera, microphone and loudspeaker for intercom and bell button, it forms the basic configuration for an intercom station with 1 bell. It transmits speech clearly and without distortion. The integrated 2 megapixel camera overlooks the entrance area during a ringing event - thanks to IR LEDs by day and night. An electronic door opener (door buzzer) is connected to the relay input/output.

Parameter Name	Parameter Value
Interface	PoE IP
Resolution	2 Mpx
Other characteristics	day/night
