Locating adapters, flange, stainless steel, pneumatic

Product description:
Clamped using compressed air. If the pressure fails, tension is retained by a spring.
A spring force of 6 N must be overcome to release the positioning adapters using compressed air.

Material:
Body, stainless steel.
Seal, NBR.

Version:
Stainless steel bright.

Note for ordering:

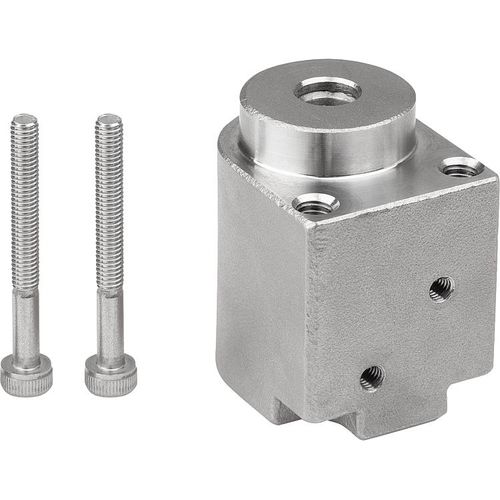

M3x28 cap screws for fastening from below are supplied.
M4 cap screws for fasteing from above are not supplied.

Note:

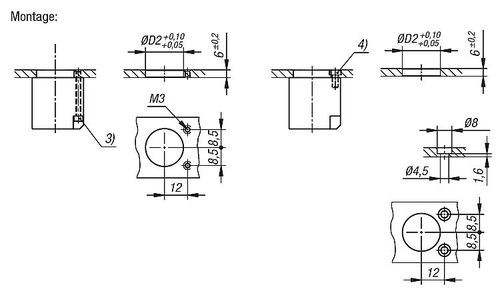

Installation dimensions are for a 6 mm thick plate.
The specified clamping forces (F) and holding forces are based on an operating pressure of 0.5 Mpa.
Repeat accuracy ±0.2 mm.

Accessory:

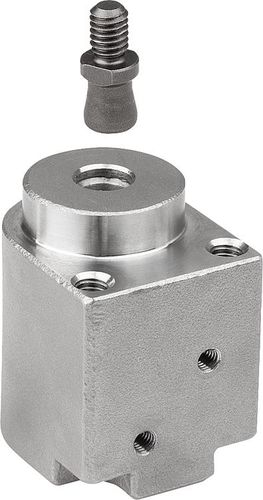

Clamping pins 03192-25.

Parameter Name	Parameter Value
Type	pneumatically-operated
Other characteristics	flange stainless steel
