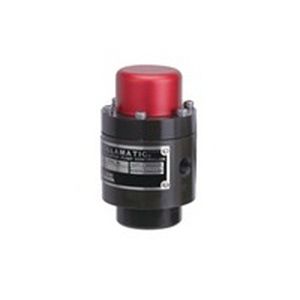

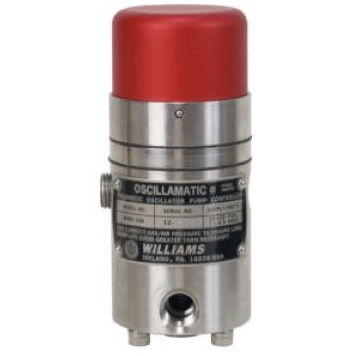

The MK-II Oscillamatic Controller is a pneumatic pulser/timer used to operate the Williams series of pneumatically operated pumps.

The controller, consisting of an upper and lower chamber separated by a sliding spool, uses a capillary tube with a needle valve to transfer the supply air/gas from the lower to the upper chamber. While the controllers differ in their seals, MK-X using U-cup seals and MK-II, MK-VII, MK XIIA are using diaphragm seals, their operation is essentially the same. When the sliding spool is in its highest position, a pilot plug closes a vent and moves the supply air/gas to the pump or relay. In the spool’s lowest position, the reverse is true; the pilot plug prevents supply air/gas from entering pump or relay and opens the vent to let it exhaust. The spool then returns to its highest position and repeats the cycle.

Features

Manually operates Williams pneumatic pumps
Diaphragm design eliminates need for lubrication
Uses diaphragms vs “U” cups for reliability
316 stainless steel construction

Parameter Name	Parameter Value
Pump type	pneumatic, dosing, diaphragm pneumatic dosing diaphragm
Other characteristics	aluminum
