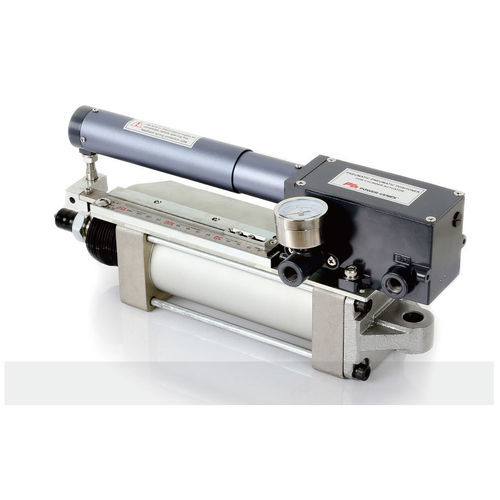

pneumatic-pneumatic positioner ideally designed and optimized for cylinder actuator and guaranteeing precise and stable performance with cylinder actuator

Features

- Easy to set
- Compact
- Precise and stable performance
- Suitable for a wide application

Pneumatic connections - Rc 1/4 or 1/4NPT
Ambient temperature - -20 ~ +70℃
Pressure gauge - Stainless steel
Output characteristics - Linear
Linearity - Within ± 1.0% F.S
Sensitivity - Within ± 0.5% F.S
hysteresis - Within 1.0% F.S
Repeatability -

Within ± 0.5% F.S
Air consumption - 5 LPM (Sup. 1.4 bar)
Material - Aluminum die-cast

Parameter Name	Parameter Value
Type	pneumatic
Orientation	linear
Product applications	for cylinders
Other characteristics	compact
Weight (kg)	2
