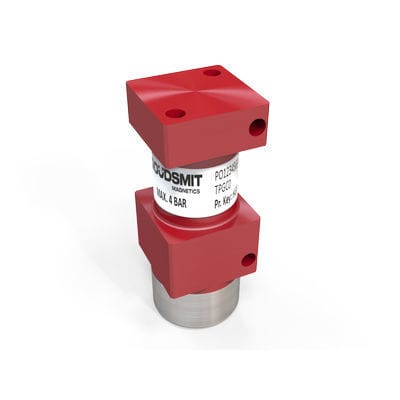

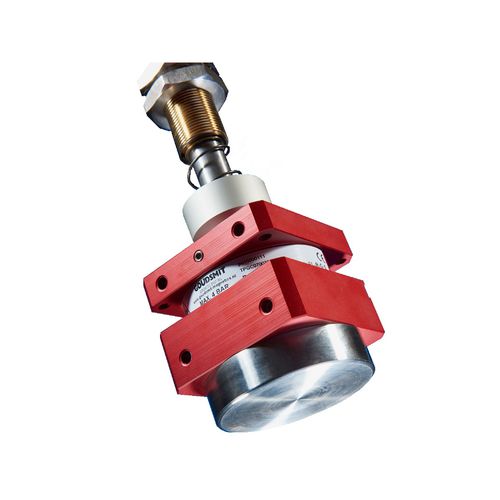

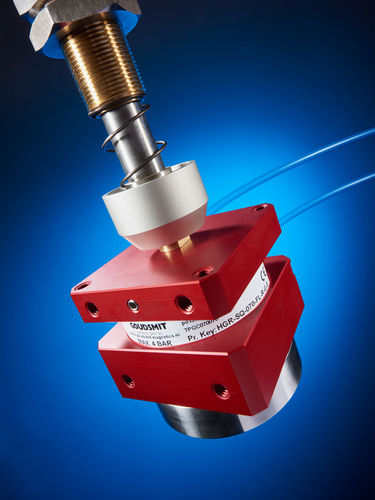

With magnetic grippers - also called robot grippers of end effector grippers - you automatically pick up flat steel products or sheets up to 10 mm thick.
They are quick and easy to switch, and specially designed for transferring, placing or positioning using a robotic arm.

Magnetic grippers serve as end of arm tooling for sheets. They even hold perforated sheets effortlessly.

For sheets up to 10 mm thick
Switching: pneumatic
For robot End-of-arm tooling

Permanent magnet

End of arm tooling
Magnetic grippers are ideal when you want to pick up, place or position flat, steel products with a robot. The applications are very diverse, such as:

pick-and-place of steel parts

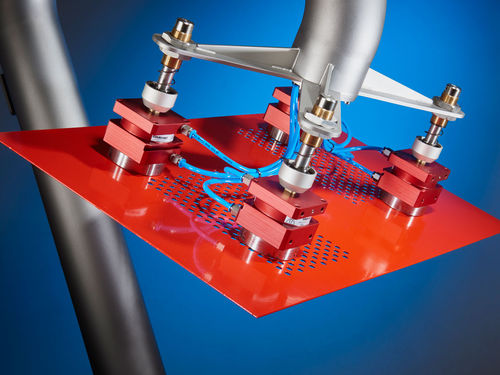

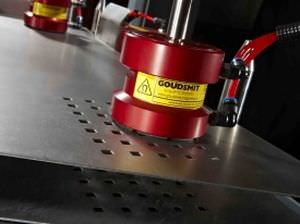

handling perforated sheets with a robot arm
unstacking workpieces from crates (bin picking)
positioning sheets in presses

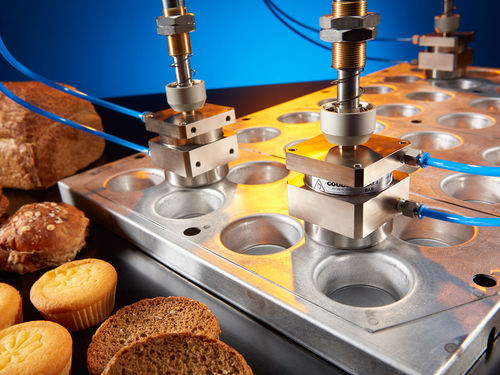

stacking or unstacking hot baking tins
The high temperature gripper is suitable for this last example. For example, you can also use it to load and unload high-grade steel in a press; it is formed at high temperatures.

Parameter Name	Parameter Value
Drive type	pneumatic
Gripping device	with suction cup
Applications	for lifting positioning handling
Other characteristics	pick-and-place
Domain	industrial
Carrying capacity	45 kg (99.2 lb)
