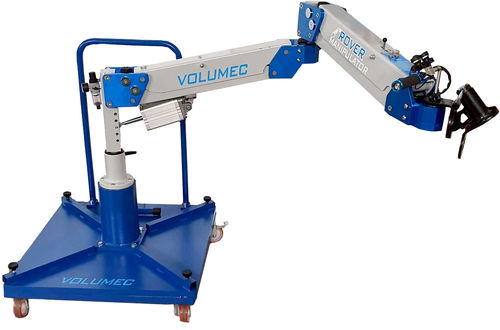

ROVER MANIPULATOR allow to lift, move and rotate your particulars with weight from 1 to 50 kg with the utmost sempliciity thanking to an ergonomic system, easy to be used.

In order to the type of handling, rover manipulator could be equipped of different gripping systems, as like: pneumatic grippers, magnet or suction cup.

During the manipultation is also possible to rotate the items in desired position before laying

Characteristics
- LIFTING: From 1 to 50 kg.
- WORKING RAY: 1660 mm + Head
- VERTICAL RACE: 578 mm (990 mm)
- ANCHORING SYSTEM: Pneumatic, Magnet, Suction Cup or Customized
- WEIGHT: RM01: 30 kg - RM02: 40 kg
- PRESSURE: 06-08 bar
- SPEED REGULATION: going and return
- OPERATING TEMPERATURE 10°-45°
- ROTATION: 360°

Parameter Name	Parameter Value
Drive type	pneumatic
Gripping device	with gripping tool vacuum with hook with clamping system with lifting magnet
Applications	for lifting for mechanical components for materials handling transport for glazing for panel sheet metal parts for panels
Configuration	pillar
Other characteristics	ergonomic rotary balanced for the automotive industry mobile rotation 0°- 90° column lift articulated
Domain	industrial for the food industry for the automotive industry for the plastics industry for forklift trucks car for the aerospace industry heavy-duty
Carrying capacity	Min.: 1 kg (2.2 lb)Max.: 50 kg (110.2 lb)
