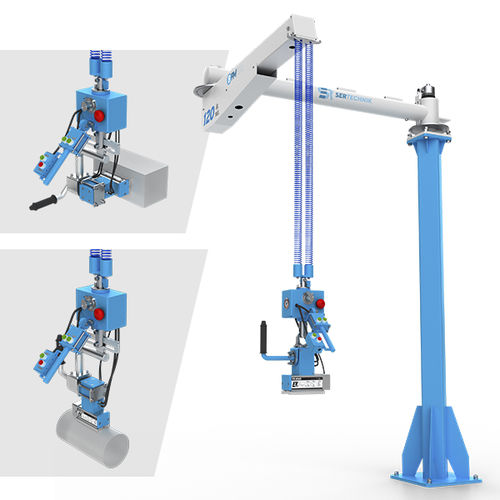

BPM is combining the ease of magnetic lifting with ergonomic and safe operation of pneumatic handling.

Due to the perfect load distribution, Magnetful 120 enable almost weightless lifting and handling in all directions with a wide range of different loads.

Pneumaticly activated magnets and safety features make our products versatile and a powerful choice for industries such as manufacturing, assembly, logistics, and material handling.

SAFETY:
-Operator can’t turn the magnet off when the the load is lifted. Magnet can be turned off when the load is placed at a surface.
-The system does not permit the lifting unless magnet been placed in the correct position and fully activated.

Parameter Name	Parameter Value
Drive type	pneumatic
Gripping device	with gripping tool with lifting magnet
Applications	for gripping for lifting for tubes for welding for mobile applications positioning loading for bodywork for vehicles for workstations parts load for panels for refrigerators for refrigerated counters for emptying for materials handling unloading for building materials for metal panels for molds turning for mechanical components sheet metal for sheet metal for tools steel sheet metal for thick sheet metal coil for pipes tray for grinding auto parts for laying tiling for forged parts for special applications industrial rotary/non-rotary
Configuration	pillar
Other characteristics	ergonomic balanced rotary for the automotive industry modular pick-and-place mobile rotation 0°- 90° compact with manual loader with rotary head articulated lifting axe for small spaces with speed controller for foundry applications with cable lift with tilter rope portable
Domain	industrial safety for the packaging industry process for tanks for indoor use for the automotive industry for the construction industry for the steel industry for forging for installation foundry cost-effective for machine tools for the aluminum industry for precision materials handling for robotic applications for production
Carrying capacity	Max.: 120 kg (264.6 lb)120 kg (264.6 lb)Min.: 10 kg (22 lb)
Working radius	3,000 mm (118 in)
Maximale stroke	Max.: 1,800,000 µm (71 in)Min.: 200 µm
Maximum lifting speed	0.5 m/s (1.6 ft/s)
Pressure	Max.: 8 MPa7 MPaMin.: 6 MPa
Rotation	Max.: 360 °360 °Min.: 0 °
Noise level (dB)	10 - 65
