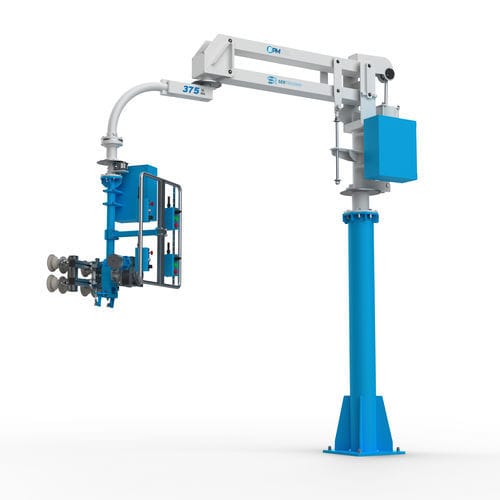

Forceful Pneumatic Manipulators are designed to move operator-centered loads within the work area with minimum effort. It balances the weight of the load, allowing the operator to carry the load quickly and safely.

Manipulators, either floor mounted or ceiling mounted. Forceful is equipped with special gripping tools which are particularly suitable to manually handle center offset loads in any direction, in a weightless condition. The manipulator, which consists of two arms, has a total of two brakes on the arm rotation axis. It’s versatile structure allows it to fit in any working environment.

Works with dry, filtrated (40 μm) and oil free compressed air (min. 0.7/0.8 MPa).

375 kg max. weight capacity. 4.000 mm max. radius. 2.450 mm vertical lift.
140 nl/min max. air consumption.

Parameter Name	Parameter Value
Drive type	pneumatic
Gripping device	with gripping tool vacuum
Applications	sheet metal for lifting positioning loading for materials handling for panel for glazing for sheet metal for plates fiberglass sanitary wares
Configuration	jib-crane
Other characteristics	ergonomic pick-and-place rotation 0°- 90° articulated rotation 0°-180° twohand control
Domain	industrial for packaging for the steel industry for the aluminum industry for tanks for glass
Carrying capacity	Max.: 375 kg (826.7 lb)375 kg (826.7 lb)Min.: 60 kg (132.3 lb)
Working radius	Max.: 4,000 mm (157 in)4,000 mm (157 in)Min.: 2,000 mm (79 in)
Maximale stroke	Max.: 2,450 mm (96 in)2,450 mm (96 in)Min.: 200 mm (8 in)
Pressure	Max.: 7 MPa7 MPaMin.: 5 MPa
Rotation	Max.: 330 °330 °Min.: 0 °
