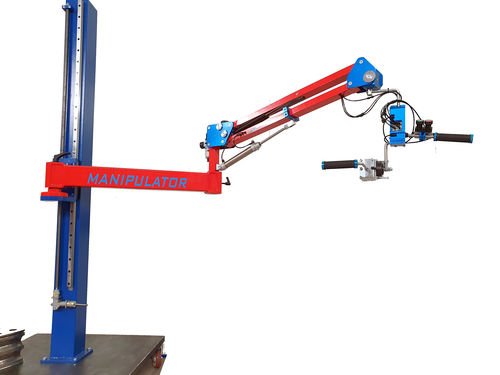

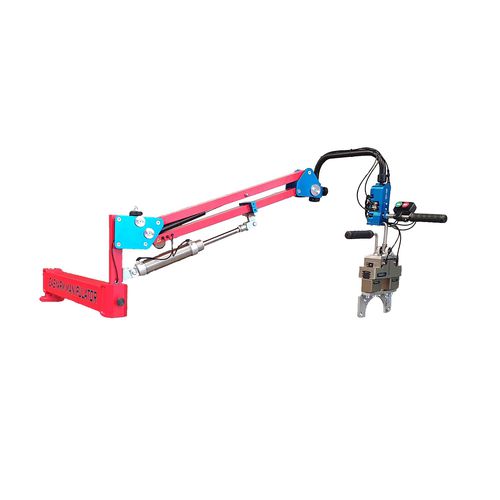

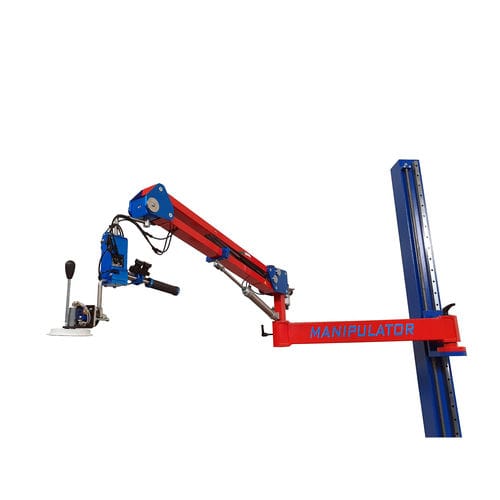

Easyarm manipulator EAM02 is a double articulated arm system that allows to move / rotate parts of various types, shapes and materials

Parameter Name	Parameter Value
Drive type	pneumatic
Gripping device	with gripping tool vacuum with clamping system with lifting magnet
Applications	for gripping for lifting tool positioning parts for mobile applications transport steel sheet metal loading for mechanical components for workstations unloading for sheet metal for materials handling industrial sheet metal for glazing auto parts for plates
Configuration	overhead trolley
Other characteristics	for the automotive industry ergonomic balanced rotary mobile rotation 0°- 90° compact articulated-arm column lift for forklift trucks portable
Domain	for the plastics industry industrial heavy-duty for the food industry for shipbuilding for the automotive industry safety for railway applications car for forklift trucks automatic for the aerospace industry for the steel industry
Carrying capacity	Max.: 46 kg (101.4 lb)Min.: 1 kg (2.2 lb)
Working radius	Max.: 1,942 mm (76 in)Min.: 100 mm (4 in)
Pressure	Max.: 8 bar (116 psi)Min.: 5 bar (72.5 psi)
