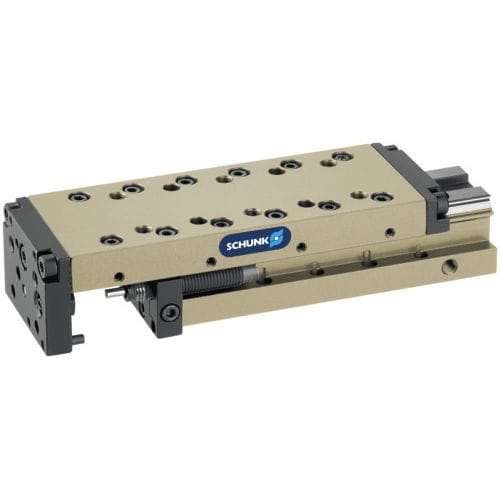

Linear module with optimized length, with pneumatic drive and pre-loaded crossed roller bearings, free from play

Field of application:
For use in assembly automation; e.g. as pick & place solutions.

Advantages – Your benefits:
- Crossed roller guide design and solid design ensured high load bearing capacities and end position accuracy in all installation positions
- Pretensioned junction rollersThat means absolutely scope-free
- High basic load ratings in all load directions
- Standardized fixing bores and connection dimensions identical for LM series for numerous combinations with other components from the modular system
- Shock absorbers and proximity switches integrated in the projecting surfaces for vibration-free movements and end position monitoring
- Rod lock by means of clamping cartridge for safety in case of emergency stops
- Mounting pattern on the rear side (from CLM 25) this means it can also be used as a stroke unit

Options and special information:
Version rod lock
prevents the structure from falling in the event of a sudden loss of energy. This module can be combined as standard with many elements from the modular system. We can assist you with questions.

Parameter Name	Parameter Value
Options	pneumatic
