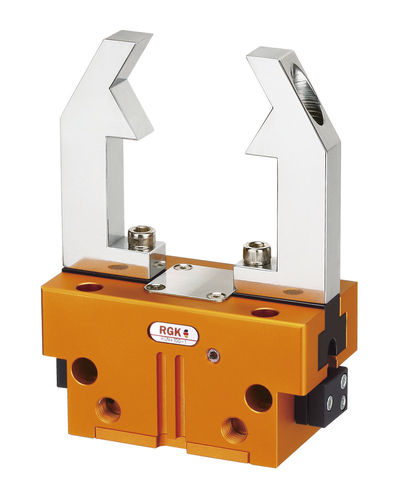

RGN CLASSIC 2-Jaw Parallel Grippers

Full Description
●Gripping force: 170-15250N
●Stroke per jaw: 4-30MM
●Types: RGN+50 – RGN+300
●Recom. workpiece weight: 0.85-75KG
●Max. finger length: 400MM, Repeatability: 0.03MM, won’t deform
●Aluminum shield can be applied to enhance the IP rating
●Slide made of sturdy T-slot, can withstand more torque
●Can be used with an external mechanical SDV pressure safety valve to ensure that the gripper can continue to work when the air is lost
●High-temperature models are available (maximum up to 1000 ° C).
●Low-temperature, corrosion-resistant models also available on request
●Great for robot to polish and deburr, common gripper for all kinds of special machines

Parameter Name	Parameter Value
Operation	pneumatic
Type	parallel
Number of jaws	2-jaw
Grip strength (N)	170 - 15250
Stroke (mm)	4 - 30
