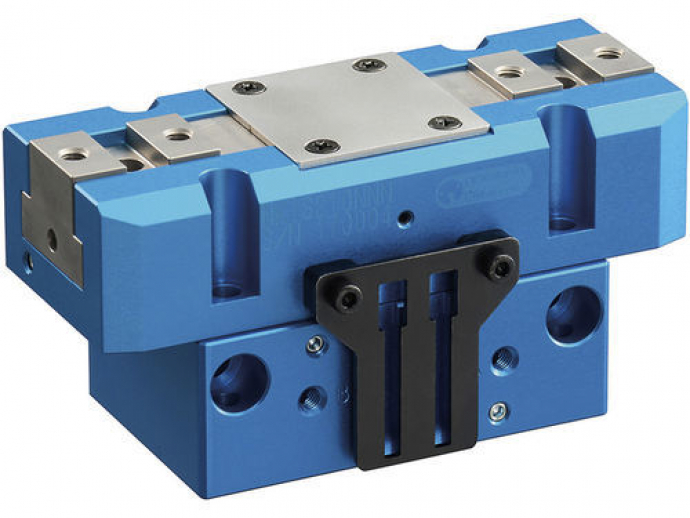

High quality & durable standard model

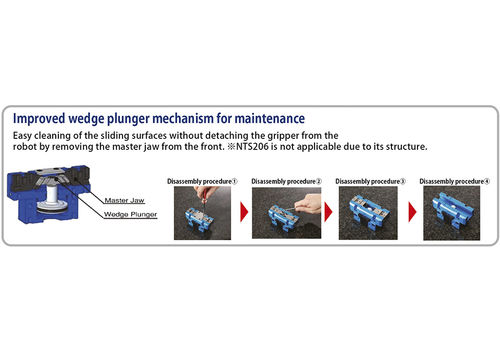

Swarf protection and improved maintenance
High gripping force for stable gripping of heavy workpieces

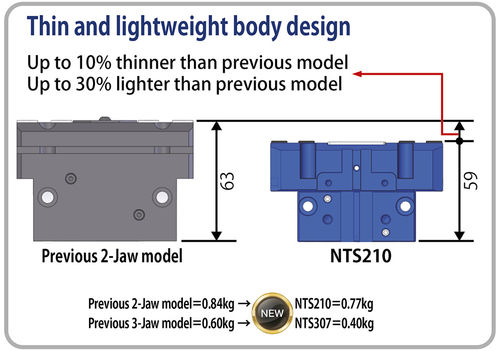

Lightweight and compact body not limiting the load capacity of robot
New mounting style for smaller protrusion compared with conventional models
Improved gripping accuracy due to extremely rigid body

* Air pressure set at 0.6 MPa.
Measurement Distance L(mm): 10
Repeatability(mm): ±0.01
Mass (kg): 0.29
Air Consumption per reciprocating (cm3): 8.4
Air pressure (MPa): 0.2 ~ 0.8
Operating Temperature (℃): 5 ~ 60

Note 1. Please install a check valve in the air-pressure circuit so that the gripper will not release a workpiece even if the air pressure drops down.
Note 2. A reed switch bracket is attached.
Note 3. In case proximity switches are used for direct detection of jaw stroke, please purchase proximity switch brackets additionally.
Note 4. The material of internal seals of grippers is nitrile rubber. If the fluororubber seals are needed, please consult Kitagawa distributor.

Parameter Name	Parameter Value
Operation	pneumatic
Type	parallel
Number of jaws	2-jaw
Application	for heavy loads
Options	compact lightweight internal
Grip strength (N)	250 - 280
Stroke (mm)	6 - 12
