Pneumatic gripper GramForce®

Pneumatic gripper GramForce®

Pneumatic gripper GramForce®

About


With the sleek, new GramForce® gripper, you’ll find all the features you’d expect to find in Airpot’s family of Accurate Force Pneumatic products-and then some. At every turn, expect minute friction levels that assure uncompromising force accuracy. With wide operating temperature ranges. And repeatability you can depend on, time after time, for millions of times. Lubrication? Never! It’s pre-lubricated for life, so it never needs maintenance. The small size and a mere 205 grams total mass keeps this gripper light on its feet. Its stainless steel mounting blocks accommodate finger lengths up to 75 mm. And combined with its synchronous and parallel design, it is counterbalanced to provide unchanging gripping force in any mounting orientation: It’s a versatile gripper like no other.

So, in short, we’ve gone to great lengths to design the GramForce® gripper for your most exacting applications powerfully tough on the inside, but with a grip as gentle as the flutter of a butterfly’s wings.

What’s it good for?
Whether the parts you need to work with are exceedingly fragile, soft, delicate, or sensitive, you’ll see they can now be accurately and safely grasped, held, or positioned with this impressively adroit gripper. It’s ideal for precision assembly equipment, test and measurement devices, robotic arm end-effectors, small parts handling, and the most delicate of machining operations you can think up.

What’s in it for you?

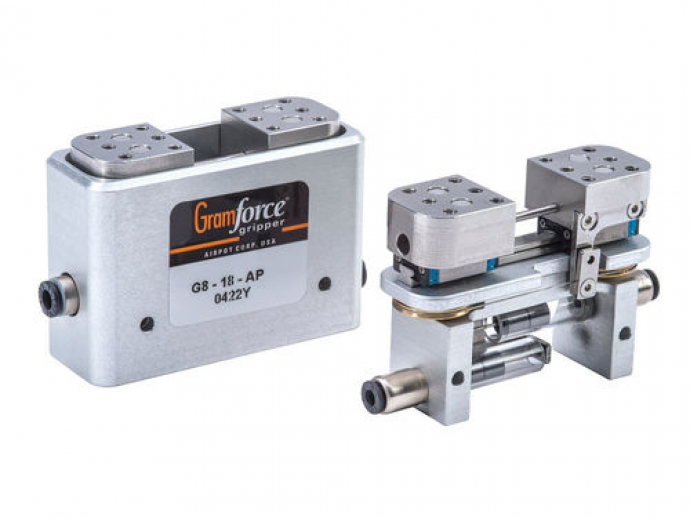

Inside the Airpot® GramForce® gripper (see below) you’ll find it is driven by two tiny 5.6mm bore, ultra-low friction pneumatic Airpot actuators, enhanced with our Airpel® Plus technology.



PARAMETERS

Parameter Name Parameter Value
Operation
pneumatic
Type
parallel
Number of jaws
2-jaw
Application
for small loads
Options
precision
Grip strength (N)
0.25 - 8.6
Stroke (mm)
18 - 18
