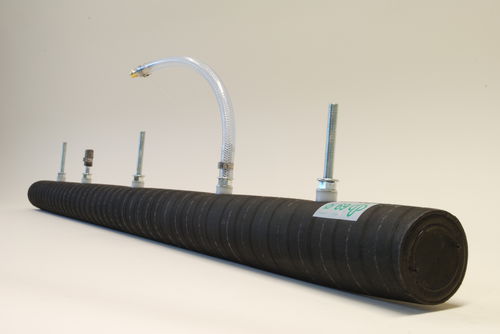

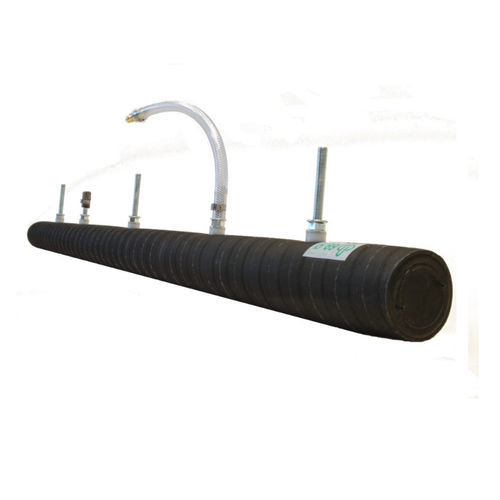

The GGC(A) type pneumatic gripper tube comes in the form of an inflatable air jacks equipped with supply(ies) for connection to compressed air, with threaded fasteners, for quick mounting on your gripper heads. Thanks to its optimal usable length it allows long-necked bottles to be handled. Many users around the world are satisfied with this tool.
This gripper uses vacuum to flatten and fit between the rows of bottles.

User / use
Bottling: Depalletization of bottles
Bottle manufacturers: Palletization of bottles
General industry: (de)palletization of various containers (plastic containers, cardboard containers, PET…)

Technical characteristics

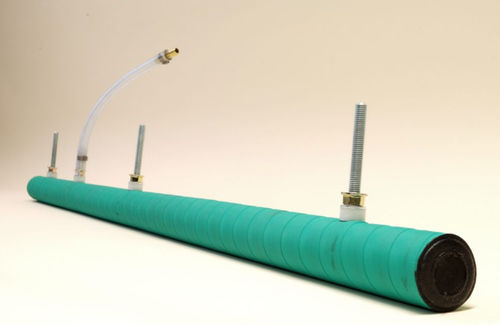

Our grippers tubes are manufactured with a highly abrasion resistant polymer coated fabric substrate then are vulcanized. Our GGC has a thick reinforced gum rubber body and rough appearance which gives them a long life span and increased robustness. A layer of food-grade gum rubber can be added upon request.
Among our GGC gripper tube line, we offer several inflation diameters (standard and custom) which can manipulate all your long-neck bottles, regardless of their capacity.
The standard properties of our GGC gripper tube are:
Length of 1230mm or 1320mm.

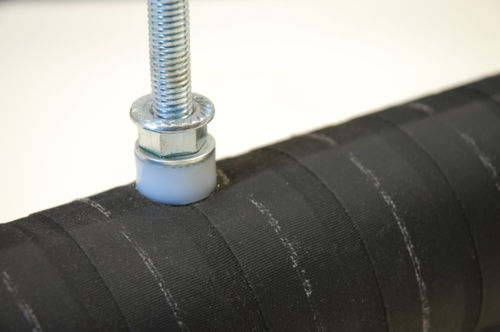

Attachment with 3 M10X70 threaded rods.
An air supply.

Performance
GGC(A) grippers tubes are used in automated processes for handling bottles. When your facility is ready, our grippers tubes are an indispensable and valuable instrument for your production lines. Very strong, they can withstand up to 1.2 bars of pressure.
If you have several types of neck, our different grippers tubes are quickly removable between your production changes.

Parameter Name	Parameter Value
Operation	pneumatic
Application	for bottles palletizing handling for cardboard boxes
Options	inflatable
Stroke (mm)	17 - 40
