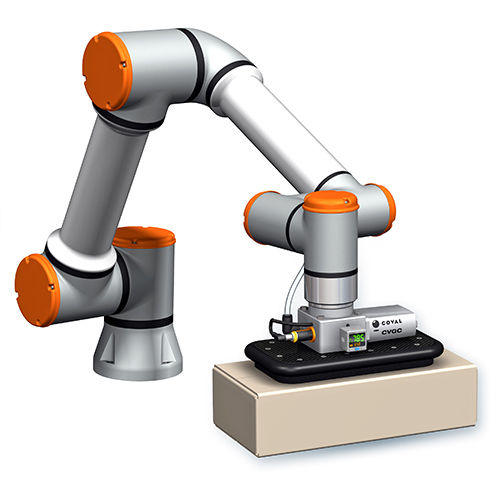

With their innovative design, Coval’s CVGC carbon vacuum grippers correspond perfectly
to the weight constraints, flexibility and safety of collaborative robot applications.
The CVGC series is composed of:
. a carbon structure, 2.5 times lighter than aluminum and offering mechanical strength 6
times greater
. flexible material on the gripper edges, to protect both gripper and operator
. foam gripping interface, for versatile product handling
. a plastic “function” block, including vacuum generator, pilot control cartridge, silencer and
vacuum switch…
… all this, in a very compact and ultralight design, guarantees a fast setup and easy integration on the robot.

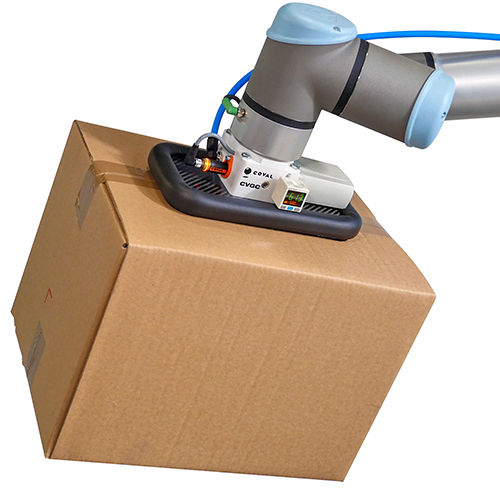

The three standard formats allow you to choose your CVGC and ensure the handling of your
loads: corrugate, plastics, metal/glass plates, etc.

Advanages :
. Ultra-light and compact, due to their carbon design.
. Suitable for collaborative robot applications, heavy-duty robots and special machines.
. Fully integrated, allowing for an easy and fast installation.

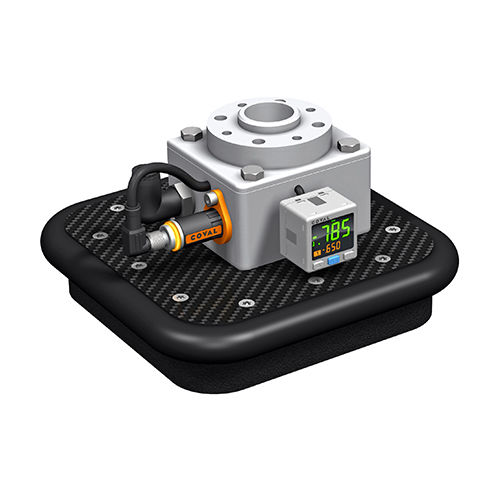

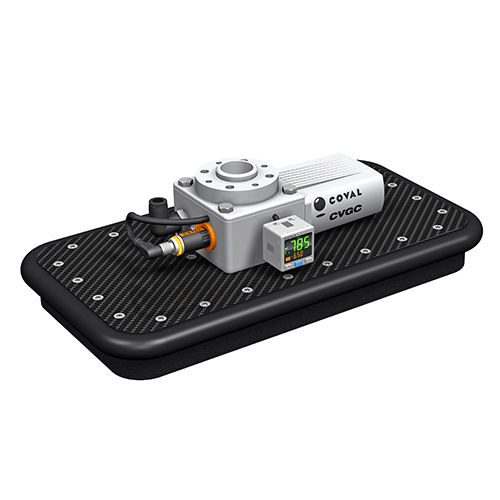

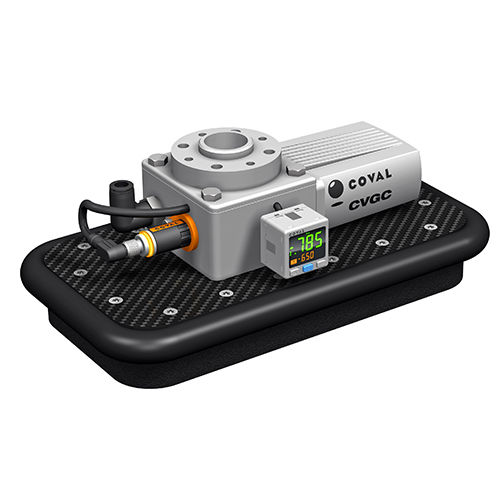

3 standard formats : 150x150 mm, 240x120 mm, 320x160 mm
Vacuum Generator Integrated
Foam gripping interface
Mounting interface ISO 9409-1
Connector or wire output
Weight : 0.8 to 1.3 kg
Plug & Play (URCap plugin available for e-Series robots)

Parameter Name	Parameter Value
Operation	pneumatic
Type	parallel
Number of jaws	other
Application	for palletization robots palletizing for small loads for handling systems for lifting applications for wooden sheets for the food industry
Options	vacuum compact multi-grip lightweight
Grip strength (N)	68 - 68
