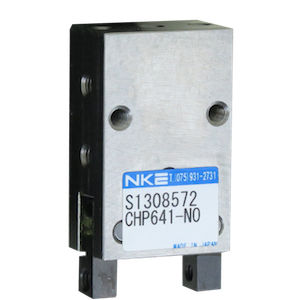

Parallel type Small Gripper, stroke from 3 to 7mm

This miniature parallel gripper is specially designed for handling extremely small parts while provinding long strokes.

Main parts are made of the stainless steel and provide tappered holes on the 5 sides of the unit for easy mounting.

Advantages

Compact-Lightweight-Fast
Silent mechanism
Quick and simple integration
Large opening angle
Position sensors

Benefits

No maintenance
Very short cycle time
Excellent power/volume ratio
Low air consumption

Courses - 3 mm
Air consumption - 60 mm³
Function - Normal open
Max cycle per minute - 120 cycles
Weight - 0.03 kg
Max. length of attachment from finger end - 10 mm
Max. weight of one attachment - 0.01 kg
Type - Parallel 2 jaws

Parameter Name	Parameter Value
Operation	pneumatic
Type	parallel
Number of jaws	2-jaw
Application	handling for industrial robots
Grip strength (N)	9.2 - 9.8
Stroke (mm)	3 - 3
