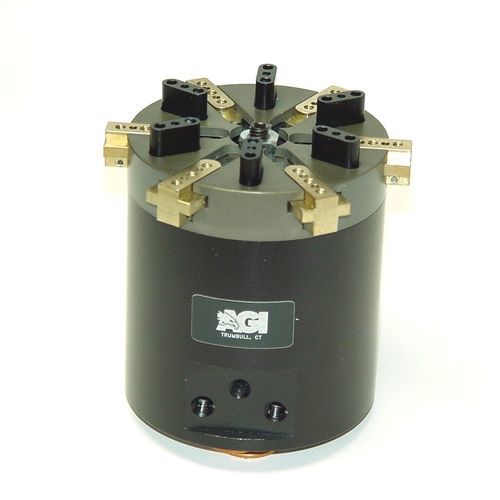

Features & Benefits
*Jaws are T-Slot bearing supported to prevent jaw breakage and offer superior load bearing performance.
*Spreading jaws and Ejector jaws have independent pistons to provide exact timing of o-ring placement.
*Compact design with long adjustable stroke. True parallel jaw motion for easy tooling.
Product Specifications
Time:
Close: 0.2 sec [0.2 sec]
Open: 0.2 sec [0.2 sec]
Pressure Range:
Low/High 30-100 PSI [2-7 BAR]
Temperature Range:
Low/High -20°/180°F [-28°/80°C]
Side Play: ± 0.001 [.03 mm]
Repeatability from center: ± .002 [.06 mm]
Loading Capacity: Static – Dynamic
Max Tensile T
60 lbs 20 lbs
[260 N] [88 N]
Max Compressive C
60 lbs 20 lbs
[260 N] [88 N]
Max Moment Mx
100 in/lb 25 in/lb
[11 Nm] [2.7 Nm]
Max Moment My
120 in/lb 30 in/lb
[13 Nm] [3.3 Nm]
Max Moment Mz
100 in/lb 25 in/lb
[11 Nm] [2.7 Nm]
Material: High Strength,Hard Coated
aluminum bronze alloys, Steel
Weight: 1.25 lbs [.56 Kg]
Piston Diameter: 1.00 in [25.4 mm]
* [ Depending where in the cycle of stroke it is measured. The farther the spread or opening of jaws, the stronger the force. This exponential force {curved} applies to all AGP-OR Grippers. Also, keep in mind these are ‘no’-friction numbers. Every application will entertain a different coefficient of kinetic friction depending on finger design, {height & length}, and should be taken into consideration during design stages of assembly equipment ].
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Operation |
pneumatic
|
| Type |
parallel
|
| Number of jaws |
6-jaw
|
| Options |
|
| Grip strength (N) |
275 - 355
|
| Stroke (mm) |
6.3 - 15
|
