Power 1.26 hp ( 0.94 kW )
Max Speed 300 rpm
Torque @ Max Speed 274 lb-in ( 31 Nm )
Max Air Consumption 57.5 cfm ( 98.0 m3/h )
Gear Ratio 10:1 :1
Speed @ Max Torque 20 rpm
Max Torque 640.0 lb-in ( 72.0 Nm )


Product Details

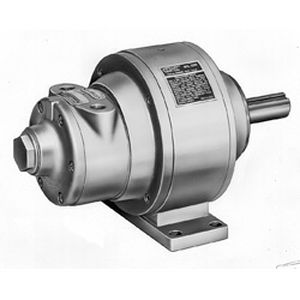

The compact 4AM-GR20 (GM) series offers variable operating speeds and power output that can be adjusted to meet the precise needs of your application. Their 10:1 gear reducer is not only ideal for lower speed and higher torque applications, but they also can be stalled or overloaded for long periods without damaging the motor. In addition to being a non-electrical device and cool running, Gast air motors are ideal for use in hazardous and extreme ambient temperature locations.

Instant starting, stopping & reversing
The ability to instantly start, stop and reverse eliminates the operational delays associated with electric motor speed up and slow-down peri

Mounting Option
Can be face and foot mounted – horizontal or shaft down operation.ods.

Customization
Customization of materials, shafts, paint colors, mounting configurations and gearing is available for OEM applications.

Parameter Name	Parameter Value
Motor type	pneumatic
Type	worm
Shaft orientation	right angle
Power (W)	500 - 1000
Torque (Nm)	50 - 100
Product applications	for the food industry for pharmaceutical applications
Other characteristics	compact
