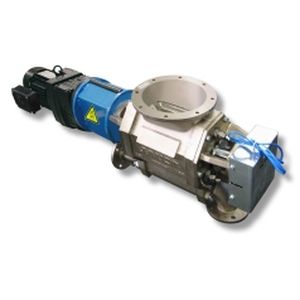

For the entry of bulk material in pneumatic pressure operations with a conveying pressure of + 1.5 bar.

Product inquiry
Dimensional sheet
NOMINAL SIZE INLET Ø :250OUTLET :2 x air connection in conveying directionCONVEYING CAPACITY (M³/H) :0,3 - 10TEMPERATURE :T80, T120MATERIAL HOUSING / BEARING PLATES :Cast ironMATERIAL FEEDER WHEEL :Structural steel, stainless steelFEEDER WHEEL :WITH boundary disks
Up to 16 rounded pocketsBEARING :Outboard roller bearingsSHAFT SEAL :Slide ring sealing and automatically adjustable aramide packing,
connection for axial gap airPOWER TRANSMISSION :Coupling with spur gear motorWEAR PROTECTION :Carbo-/ chromesteel-/ chromo-/ nickel-coatATEX DEVICE :Ex-zone inside / outside 20, 21, 22 / 21, 22 DUST
Ex-zone inside / outside 1, 2 / 1, 2 GAS

Parameter Name	Parameter Value
Type	pneumatic mechanical pressure
Operating mode	automatic
Product applications	bulk
