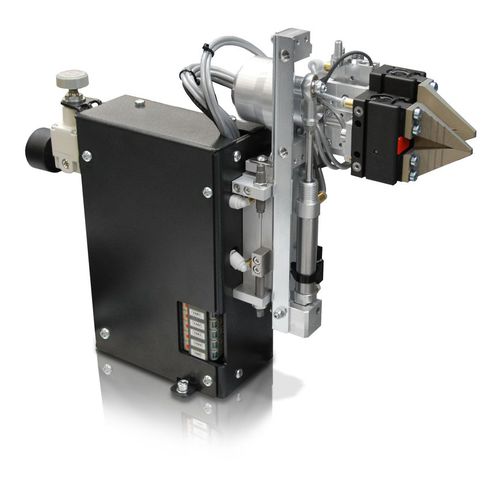

The SLD 4100 double gripper module gathers two single wires with outer diameters from 1 - 4 mm (0.039 - 0.157”) in the proper orientation allowing the swivel arm gripper to collect them. The wires are then moved to a separate station for termination into a doubling crimp. The wires may have different lengths.

- Space-saving, fully pneumatic module

- Horizontal or vertical doubling

- Wires to be doubled can have different lengths

- All parameters are fully programmable (no mechanical adjustments)

- Simple programming directly in CrimpCenter EASY software

Parameter Name	Parameter Value
Type	pneumatic double gripper mechanical vertical
Operating mode	horizontal
Other characteristics	compact
