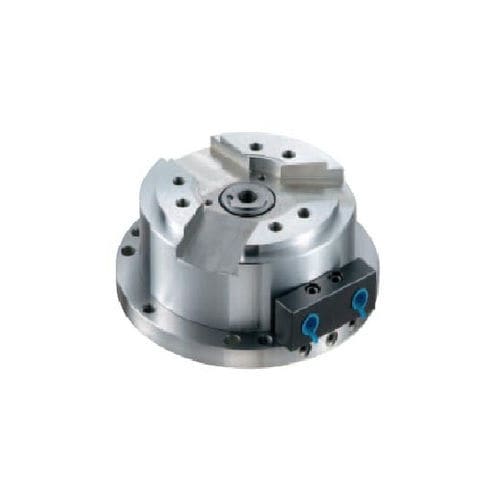

Kitagawa's Stationary Cylinder suited for versatile workpieces and a variety of chuck types.

Easily mountable to milling and drilling machines.
Easily mounted to Work Gripper multiplate.
Pneumatic or Hydraulic Pressure can be supplied.

Piston Stroke (mm): 15
Max. Allowable Pressure;
Pneumatic: 0.7MPa
Hydraulic: 1.5MPa
Max. Thrust (MPa);
Pneumatic - Push: 8.5, Pull: 8.1
Hydraulic - Push: 20.8kN, Pull: 20.1kN
Weight (kg): 15
Matching Chuck Size: 6 inch.

Parameter Name	Parameter Value
Type	pneumatic hydraulic
Technology	piston cylinder
Applications	for chuck collets
Other characteristics	pull
Stroke (mm)	15 - 15
Force (N)	8.1 - 8.5
