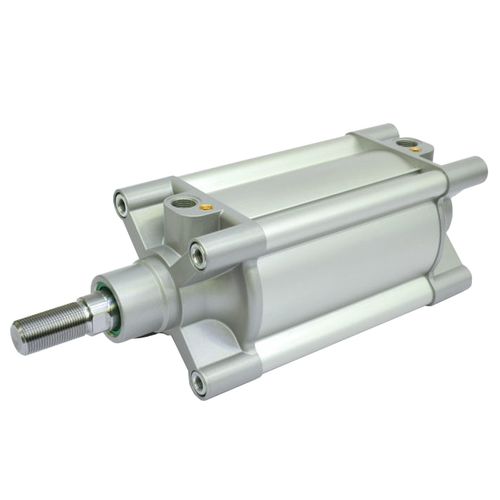

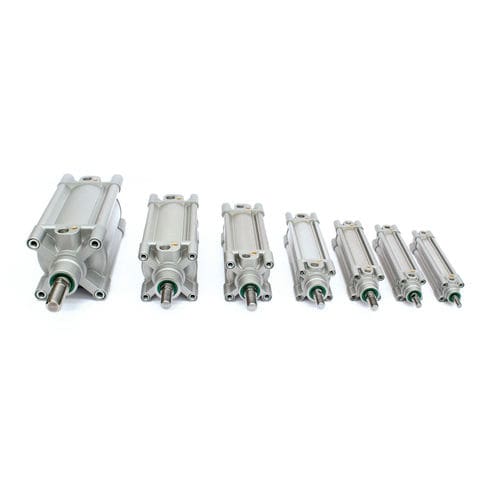

Cylinders ø 32-125 C1D Series ISO15552
XE Series
Covers: Painted die-casted Aluminium
Tube: Anodized Aluminium
Pistons: NBR + Steel
Seals: NBR/PU
Guiding Bush: Sintered Bronze
Piston Rod: Chromium Coated Steel
Fluid: Filtered and lubricated or not compressed air
Working Temperature: From -20°C to +80°C with dry air
Max Pressure: 10 bar

Parameter Name	Parameter Value
Type	pneumatic
Technology	piston
Configuration	double-acting
Material	aluminum
Norms	ISO 15552
Stroke (mm)	10 - 1000
Force (N)	482 - 7359
Pressure	Max.: 10 bar (145 psi)Min.: 0 bar (0 psi)
Ambient temperature	Max.: 80 °C (176 °F)Min.: -20 °C (-4 °F)
