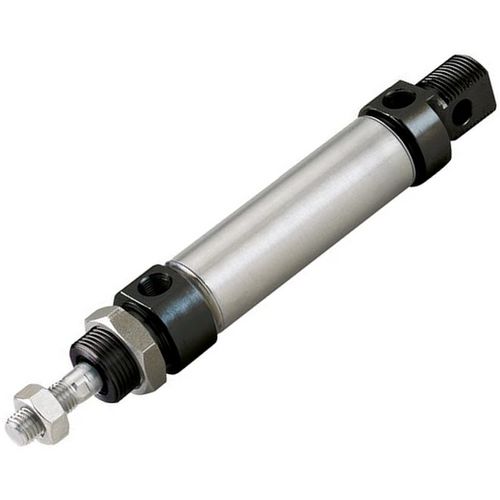

Single and double acting pneumatic cylinders - U Series

The single and double acting pneumatic cylinders of the U series are linear actuators for converting compressed air energy into mechanical energy. They are available with mounting dimensions according to CETOP RP52P / ISO 6432.

Available in 6 bores, from 8 to 25 mm, these pneumatic cylinders have an anodised aluminium swaged head, an AISI 304 stainless steel tube, a sintered anti-friction bronze bearing, an aluminium alloy piston with acetal resin guide ring and NBR seals (VITON on request).

On request, these cylinders can be equipped with a mechanical rod lock (diameter 20 and 25), a hexagonal anti-rotation rod (diameter 20 and 25), a single and double guide unit (diameter 12 to 25) and stainless steel accessories.

✔ Stainless steel tube and rod
✔ Elastic cushioning as standard, pneumatic possible on request from Ø16 to 25

Parameter Name	Parameter Value
Type	pneumatic
Technology	piston magnetic piston with piston rod
Configuration	double-acting single-acting
Material	stainless steel, anodized aluminum
Norms	ISO 6432
Applications	industrial
Other characteristics	round rod lock
Stroke (mm)	2 - 1000
Pressure	Max.: 10 bar (145 psi)Min.: 1 bar (14.5 psi)
Rod diameter	Max.: 10 mm (0 in)Min.: 4 mm (0 in)
Bore	Max.: 25 mm (0.98 in)Min.: 8 mm (0.31 in)
Ambient temperature	Max.: 150 °C (302 °F)Min.: 0 °C (32 °F)
