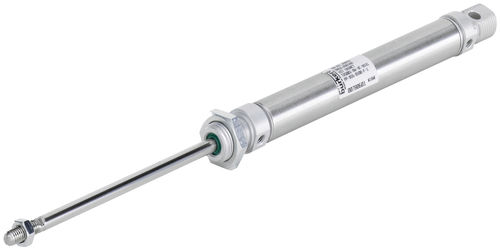

The pneumatic cylinders feature magnetic pistons and are available in the following versions: double-acting with fixed end position damping, double-acting with adjustable end position damping

According to DIN 6432
With magnetic piston

Parameter Name	Parameter Value
Type	pneumatic
Technology	magnetic piston
Configuration	double-acting
Material	stainless steel, aluminum
Other characteristics	with adjustable cushions
Stroke (mm)	10 - 200
Force (N)	20 - 265
Pressure	Max.: 10 bar (145 psi)Min.: 1 bar (14.5 psi)
Rod diameter	Max.: 25 mm (1 in)Min.: 8 mm (0 in)
Ambient temperature	Max.: 80 °C (176 °F)Min.: -10 °C (14 °F)
