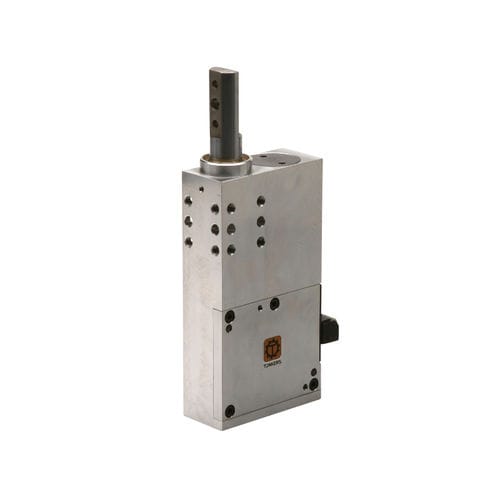

09. LINEAR CYLINDER SZV.1 40...
Linear unit with integrated pneumatic cylinder which activates the push rod via a toggle-joint mechanism, self-locking, size 40. Flat housing in monoblock design of high-strength aluminium material, high thrust and tensile forces of up to 4 kN in the end position due to toggle-joint transmission. Double-guided push rod in bronze/graphite bushings, mounting options on all sides and base. Integrated end position sensing in cartridge design. Option: - Hand feed for manual loading and pneumatic closing

Parameter Name	Parameter Value
Type	pneumatic
Technology	double-rod with guided piston rod
Material	aluminum
Other characteristics	guided flat cartridge self-locking
Force (N)	0 - 5
