Short-Stroke Air Cylinders That Fit Into Any Design

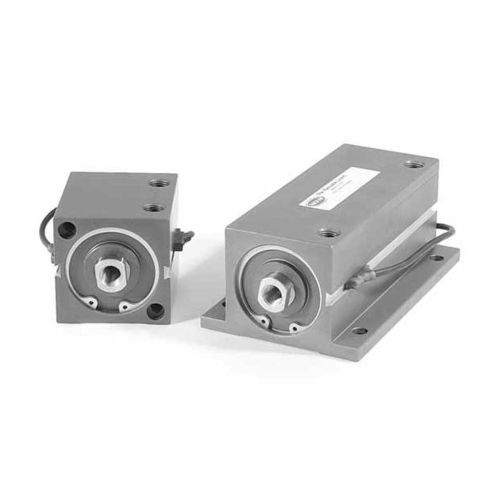

Square 1® air cylinders feature short strokes and a compact size to fit into any application. The square design of this double-acting, single-rod unit allows users to decrease the center-to-center spacing for applications that need multiple cylinders. Built for durability, the Square 1’s heavy walls are made from hard-anodized aluminum, both inside and outside the cylinder. Units with a one-inch stroke or larger come with a Teflon™ piston bearing and a longer bearing on the rod. Other construction features include hard chrome-plated stainless steel piston rods for long cylinder life, and a rod bushing lined with non-metallic high performance composite for high load-bearing strength.

The Square 1 also comes pre-lubed with Magnalube-G® Teflon™-impregnated grease to resist corrosion and moisture. Bore sizes range from ¾ to 2 inches and strokes up to 6 inches, and operating air or hydraulic pressure is 150 psi.

Key Specifications

Features
• - Available in bore sizes from ¾ to 2 inches and strokes to 6 inches
• - Machined from aluminum extrusion
• - Lightweight aluminum piston
• - High-performance composite rod bearing for reduced wear
• - Chrome-plated 303 stainless steel piston rod
• - Female rod end with wrench flats
• - Internally lubricated Buna-N O-ring
• - Prelubed with Magnalube-G grease
• - Crosshatch polished bore for lubrication retention and long seal life
• - Air and hydraulic service to 150 psi
• - Ambient and media temperature range from -25° to +250° F (-31° to +121° C)
• - Three mounting styles: Side tap, face, side lug
• - Many options to choose from
• - Magnetic piston sensing available

Parameter Name	Parameter Value
Type	pneumatic hydraulic
Technology	piston magnetic piston
Configuration	double-acting
Material	stainless steel, anodized aluminum
Norms	ISO 6431
Other characteristics	compact lightweight high-performance short-stroke
Pressure	150 psi
