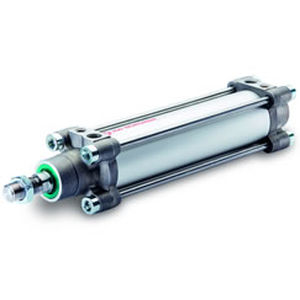

High performance, stability and reliability
Polyurethane seals ensure efficient low friction operation and long life
Switches can be mounted flush with the profile barrel

Port size: - G3/8
Operating pressure: - 1 ... 16 bar
Cylinder diameter: - 80 mm

Parameter Name	Parameter Value
Type	pneumatic
Technology	tie-rod
Configuration	double-acting
Norms	ISO 15552
Stroke (mm)	80 - 80
Force (N)	3016 - 3016
Pressure	Max.: 16 bar (232.1 psi)Min.: 1 bar (14.5 psi)
Ambient temperature	Max.: 80 °C (176 °F)Min.: -20 °C (-4 °F)
