- Stainless Steel AISI 303 rolled rod to reduce friction as much as possible
- Rod and piston seals with the highest efficiency and longest durability
- Metal piston to resist to extreme stresses
- Bronze guide bushing to reduce the axial clearance when rod is fully extended

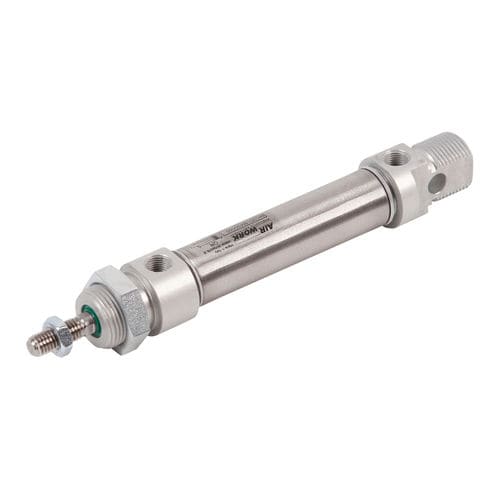

MC Series – ISO 6432 Cylinders
Airwork’s ISO 6432 microcylinders are manufactured with the highest quality levels and have bore sizes between Ø8 and 25 mm therefore they allow the possibility to be used in several applications.

Both aluminum heads are fixed to the stainless steel tube by a rolling process.
ISO 6432 cylinders can be realized with double or single effect (pushing or pulling), magnetic, with bumper or cushioned.
Their fixing accessories are also available and special designs can be realized on customer demand.

Parameter Name	Parameter Value
Type	pneumatic
Technology	magnetic piston with through rod cylinder
Configuration	double-acting single-acting
Material	anodized aluminum, stainless steel
Norms	ISO 6432
Applications	high-temperature industrial for OEM for the automotive industry
Other characteristics	with adjustable cushions round with proximity sensor custom threaded micro blocking high-efficiency ATEX
Stroke (mm)	10 - 320
Force (N)	30 - 295
