About

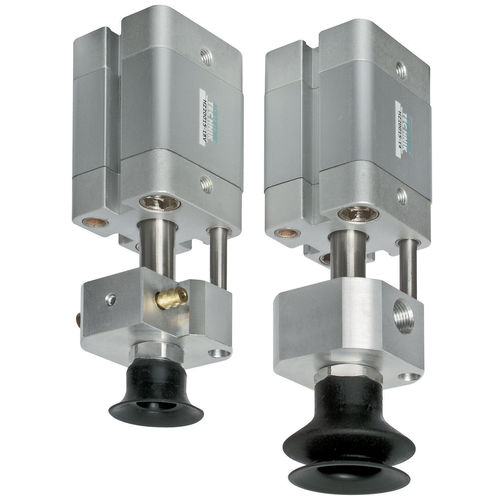

is a simple and reasonably priced component with a lot of automation.

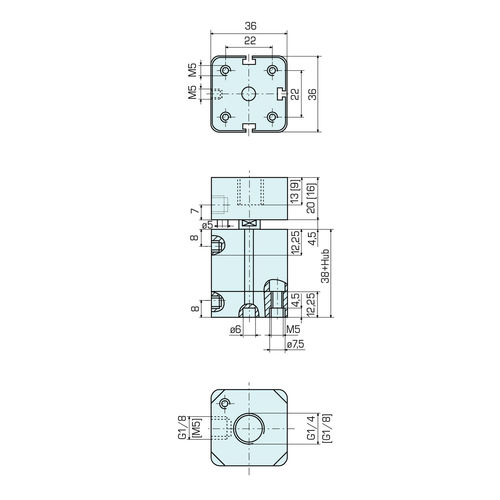

It is torsion-proof and has a universal holder for all our suction cup models with a 1/8" or 1/4" outside fitting (SG..., SH..., SO..., and SR...).

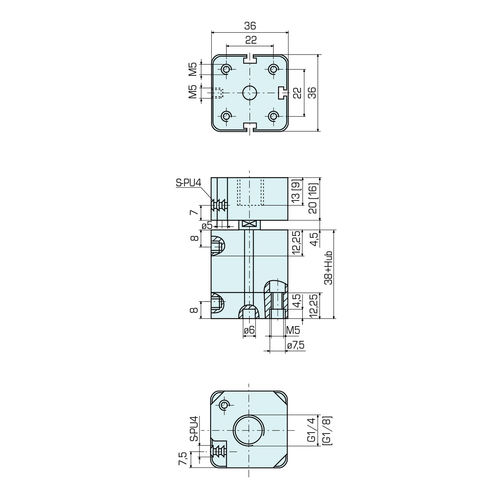

Version "V" has an integrated vacuum ejector.
For supervisory purposes the position of the magnet piston can be requested via the HZ20-RS reed switches. These can each be fixed in the case groove.
Function: - - Double acting, torsion-proof
Material housing: - - Anodized aluminum
(suction holder: aluminium)
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
pneumatic
|
| Technology |
magnetic piston
|
| Configuration |
double-acting
|
| Material |
anodized aluminum
|
| Applications |
for lifting applications
|
| Other characteristics |
vacuum
|
| Stroke (mm) |
5 - 100
|
| Force (N) |
125 - 125
|
| Pressure |
Max.: 10 bar (145 psi)Min.: 4 bar (58 psi)
|
| Bore |
20 mm (0.79 in)
|
| Ambient temperature |
Max.: 80 °C (176 °F)Min.: -20 °C (-4 °F)
|
