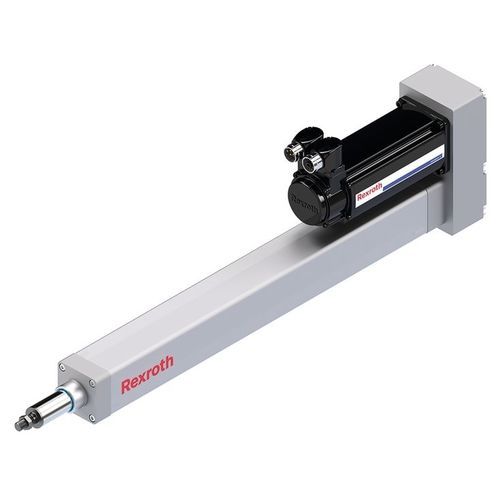

Electromechanical cylinders EMC: hygienic, variable, flexible, energy efficient

• High-precision ball screw assemblies: for high performance with maximum cost-effectiveness
• Complete building system with great variability: can be adapted to a wide range of applications
• Complete turn-key system: minimal construction and installation effort
• The smart, freely programmable drive system allows the realization of complex travel profiles (parameters for force, position and travel speed can be set as required over the complete working travel range).
• Optimized lubrication concept: optional connection to a one-point lubrication system reduces downtime.
• High-precision ball screw assemblies: for high performance with maximum cost-effectiveness
• Hygienic design
• Complete turn-key system: minimal construction and installation effort
• Complete building system with great variability: can be adapted to a wide range of applications

Parameter Name	Parameter Value
Type	pneumatic hydraulic
Technology	cylinder ball screw
Configuration	single-acting
Material	stainless steel
Protection class	IP65 sealed
Applications	industrial for harsh environments
Other characteristics	precision high-performance corrosion-resistant programmable
Force (N)	1200 - 104900
Speed (mm/s)	1000 - 1600
Max acceleration	50 m/s² (164.04 ft/s²)
