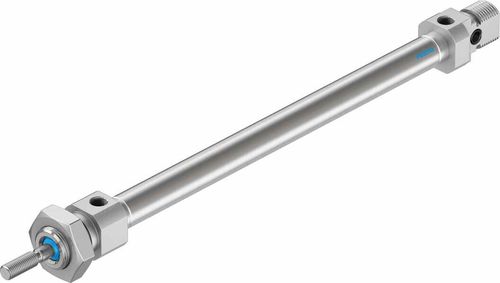

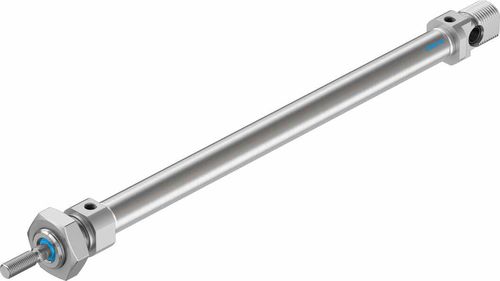

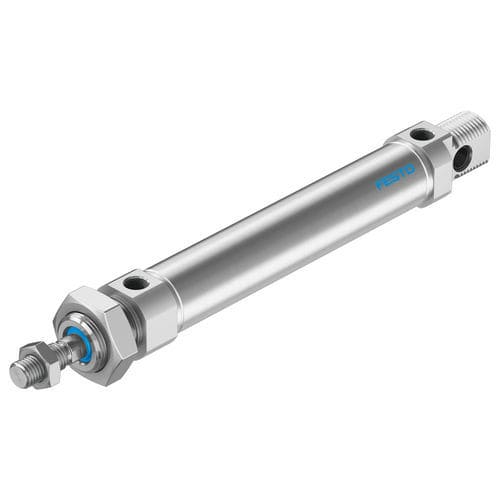

Pneumatic cylinder DSNU series

Pneumatic cylinder DSNU series

Pneumatic cylinder DSNU series

About


Long-lasting cylinder based on ISO 6432 with self-adjusting end-position cushioning and extensive accessories.

• Wide range of variants for customized applications
• Good running performance and long service life
• Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optimally to load and speed changes
• Piston rod with internal or external thread
• Magnetic piston for position sensing



PARAMETERS

Parameter Name Parameter Value
Type
pneumatic
Technology
  • magnetic piston
  • with piston rod
Configuration
double-acting
Material
stainless steel
Norms
ISO 6432
Other characteristics
  • round
  • position-sensing
  • end-of-stroke
Stroke (mm)
1 - 500
Force (N)
30.2 - 1870
Pressure
Min.: 1.5 bar (21.8 psi)Max.: 10 bar (145 psi)
Ambient temperature
Min.: -20 °C (-4 °F)Max.: 80 °C (176 °F)
