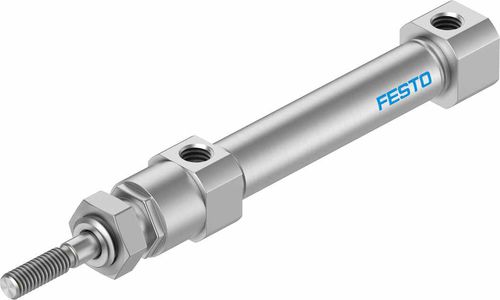

Slimmer and shorter than ever before. Ideal for tight spaces. Extremely robust thanks to its durable materials.

• Compact variant of standards-based cylinder DSNU
• Quick and easy installation, even in tight spaces
• Light weight
• Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optimally to load and speed changes
• External piston rod thread
• Magnetic piston for position sensing
• Variants recommended for production facilities for the manufacture of lithium-ion batteries
• Sustainable in production due to reduction of material use

Parameter Name	Parameter Value
Type	pneumatic
Technology	magnetic piston
Configuration	double-acting
Material	stainless steel, aluminum
Protection class	robust
Other characteristics	compact standard round position-sensing
Stroke (mm)	10 - 200
Force (N)	30.2 - 294.5
Pressure	Max.: 10 bar (145 psi)Min.: 1.5 bar (21.8 psi)
Ambient temperature	Max.: 80 °C (176 °F)Min.: -20 °C (-4 °F)
