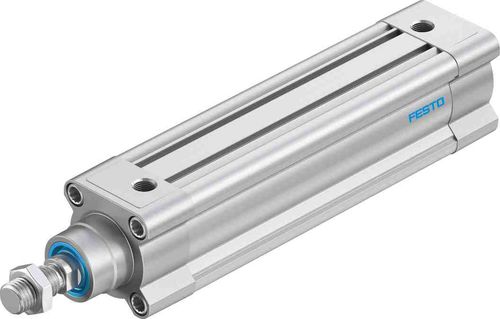

ISO profile cylinder to ISO 15552 with a wide range of mounting options.

• Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optimally to load and speed changes
• Standard profile with two sensor slots
• Wide range of variants for customized applications
• Comprehensive range of mounting accessories for just about every type of installation
• Magnetic piston for position sensing
• Variants recommended for production facilities for the manufacture of lithium-ion batteries

Parameter Name	Parameter Value
Type	pneumatic
Technology	magnetic piston
Configuration	double-acting
Material	aluminum
Norms	ISO 15552, ISO 6431
Other characteristics	position-sensing
Stroke (mm)	1 - 2800
Force (N)	483 - 7363
Pressure	Max.: 12 bar (174 psi)Min.: 0.6 bar (8.7 psi)
Ambient temperature	Max.: 80 °C (176 °F)Min.: -20 °C (-4 °F)
